07016 Tap and Die Set by SK5
07016 TAP and DIE Set by SK5
- Tap and Die Set – SK5 Steel
- Coffret de tarauds et filières – Acier SK5
- Juego de machos y terrajas – Acero SK5
- Gewindeschneidsatz – SK5-Stahl
- Zestaw narzynek i gwintowników – Stal SK5
- طقم قلاوظ وتخديد – فولاذ SK5
- ชุดต๊าปเกลียวและฟันตาย – เหล็ก SK5
- Jogo de machos e cossinetes – Aço SK5
- Set di maschi e filiere – Acciaio SK5
- Tap- en snijset – SK5-staal
- Набор метчиков и плашек – сталь SK5
- タップ＆ダイスセット – SK5鋼
- 탭 및 다이스 세트 – SK5 강재
- 螺紋攻牙組 – SK5鋼材質
- 丝锥板牙套装 – SK5钢材
- Menetvágó készlet – SK5 acél
- Bộ dụng cụ tarô và bàn ren – Thép SK5
- Σετ κοπής σπειρωμάτων – Χάλυβας SK5
- Kılavuz ve pafta takımı – SK5 çelik
- Set tap dan dies – Bahan baja SK5
Feature
07016 Tap and Die Set – SK5 Steel
Material: Crafted from SK5 high-carbon steel, renowned for its durability and wear resistance, making it suitable for cutting or restoring threads on bolts, nuts, and holes.Contents: Typically includes a range of metric taps and dies, tap wrench, die stock, and possibly thread pitch gauges, all organized in a sturdy case for portability and protection.
Applications: Ideal for threading tasks in various materials, including metal and plastic, commonly used in automotive, machinery, and general repair work
📐 Standards and Specifications
The taps and dies in this set likely conform to DIN 352 standards, which cover metric coarse ISO threads ranging from M1 to M68. This ensures compatibility and reliability in threading applications.

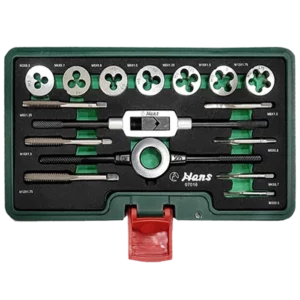

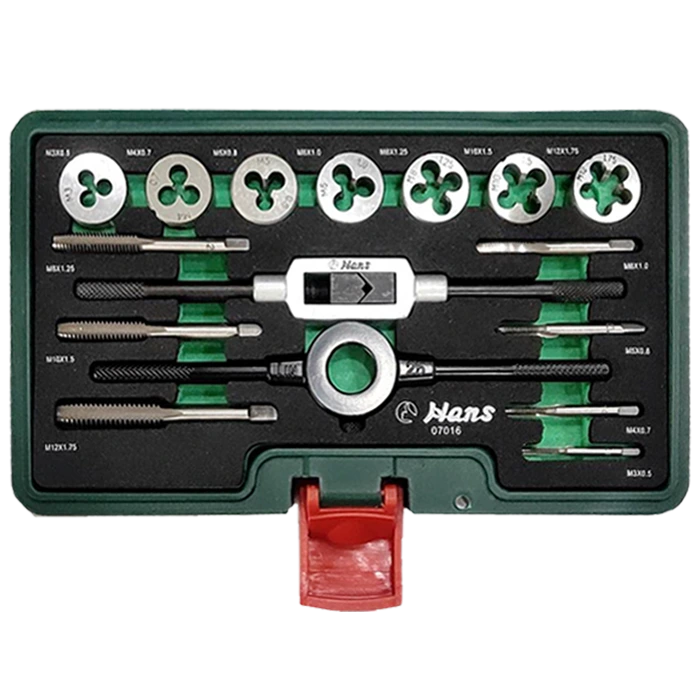

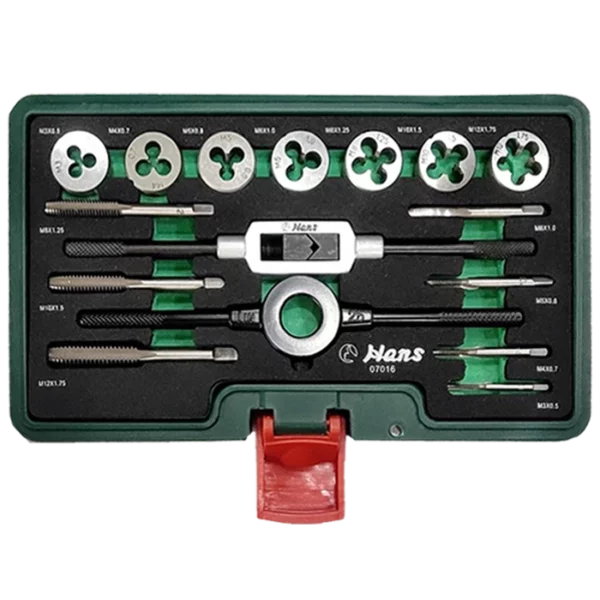

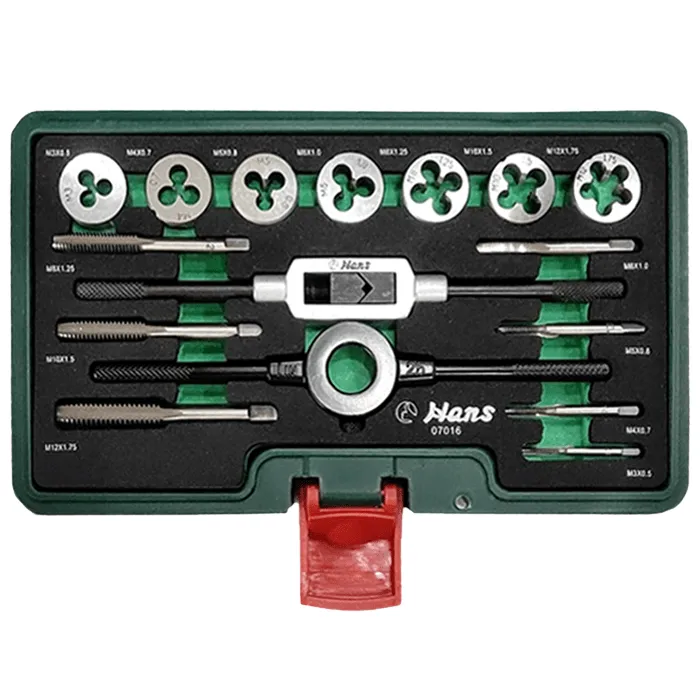

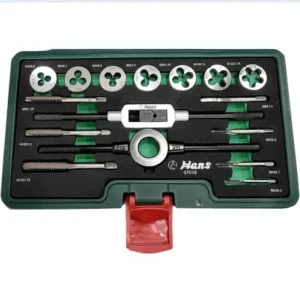

TAP and DIE Set (16PCs)
| 16PCs | 07016 |
|---|---|
| Tap and Die | M3*0.5, M4*0.7, M5* 0.8, M6*1.0, M8*1.25, M10*1.5, M12*1.75 |
| TAP WRENCH | M3-M12 |
| DIE STOCK | 25mm |

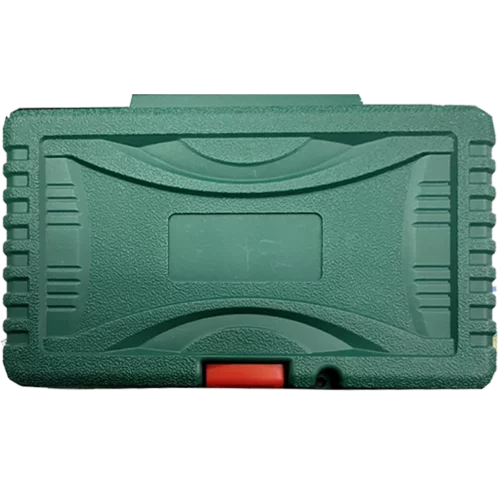

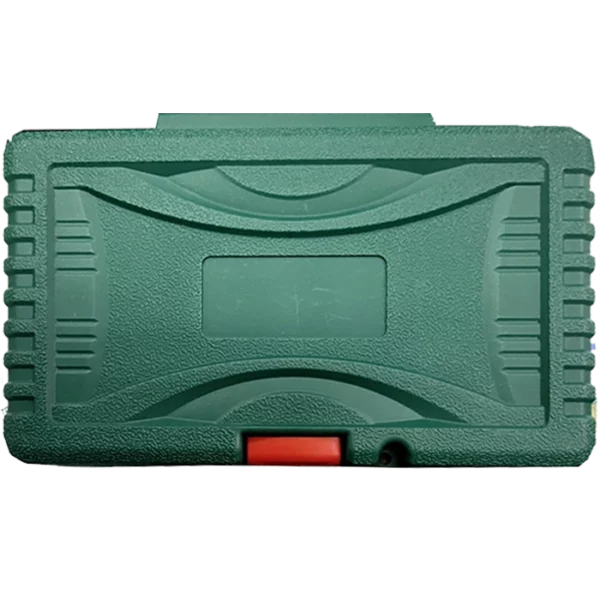

BLOW CASE : 220x120x47mm, GW= 14.5 KGs/ 20 SETS  = 1.31' |
|
Tap Size Thread Pitch (mm) Recommended Drill Size (mm)
Tap Size | Thread Pitch (mm) | Recommended Drill Size (mm) |
M3 | 0.5 | 2.5 |
M4 | 0.7 | 3.3 |
M5 | 0.8 | 4.2 |
M6 | 1.0 | 5.0 |
M8 | 1.25 | 6.8 |
M10 | 1.5 | 8.5 |
M12 | 1.75 | 10.2 |
