1930U-9 Crimping Plier for Uninsulated Terminals – 9″ DIN-Style Precision Tool
1930U-9 Crimping Pliers – 9-Inch for Uninsulated Terminals and Connectors
- Alicate de Crimpado 1930U-9 para Terminales sin Aislar – 9”
- Pince à Sertir 1930U-9 pour Bornes Non Isolées – 9”
- Crimpzange 1930U-9 für Unisolierte Anschlüsse – 9”
- Szczypce Zaciskowe 1930U-9 do Nieizolowanych Końcówek – 9”
- 1930U-9 無絕緣端子壓接鉗 – 9 吋
- 1930U-9 无绝缘端子压接钳 – 9英寸
- كماشة تجعيد 1930U-9 للوصلات غير المعزولة – 9 إنش
- Alicate de Crimpagem 1930U-9 para Terminais Sem Isolamento – 9”
- Kìm bấm cos không cách điện 1930U-9 – 9 inch
- คีมย้ำหางปลาแบบไม่หุ้มฉนวน 1930U-9 – 9 นิ้ว
- Heavy Duty Type, Cr-Mo. dies
- Pliers and their Uses- (A-E)
- Handle Introduction- (Plier, Torque Wrench/ Wrench)
| 1930U | TERMINAL CRIIMPING | L mm |  g |  pcs |
|---|---|---|---|---|
| 9 | 0.5~1.5 mm2 (AWG 20-16) 2.5 mm2 (AWG 14) 4~6 mm2 (AWG 12-10) | 230 | 600 | 6 |
Feature
Key Features:

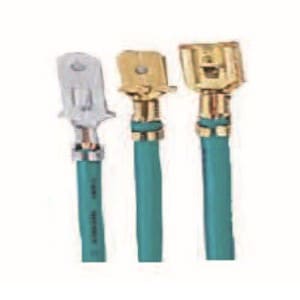

- Designed for uninsulated terminals and non-coated wire connectors

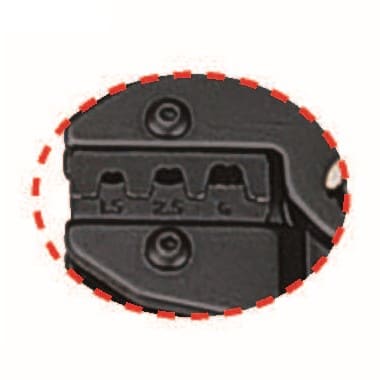

- Three crimping jaw sections for different terminal sizes
- Complies with DIN 46234 / 46237 / 46341 standards
- Heavy-duty forged body with anti-slip grip handles
- Crimping range: 0.5–6.0 mm² (20–10 AWG)
- High-leverage design ensures consistent crimp force
- Suitable for automotive, electrical, and control panel wiring
- Made in Taiwan – built with HansTools industrial-grade precision
📘 Professional Product Description:

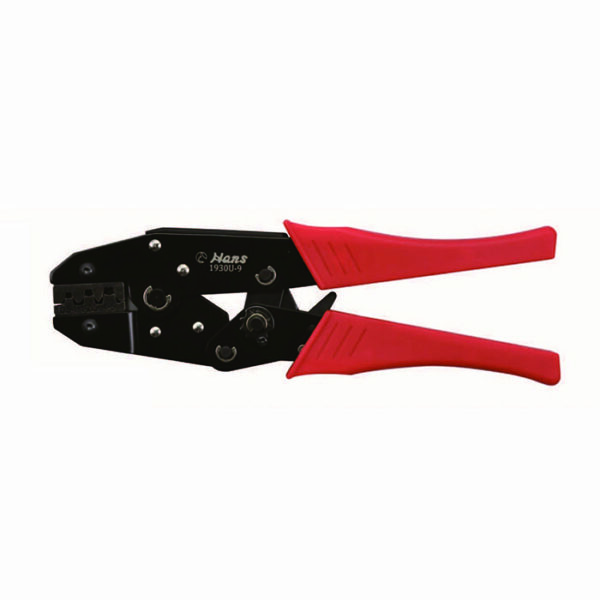

The HansTools 1930U-9 Crimping Plier is a robust 9-inch tool specifically engineered for uninsulated terminals and bare connectors in automotive and industrial electrical work. Its DIN-compliant jaws (DIN 46234, 46237, 46341) deliver secure and precise crimps across a range of wire sizes.
Crafted with hardened steel jaws and ergonomic anti-slip grips, this crimper ensures long-lasting performance and operator comfort, even under continuous use. The tool offers three crimping zones for different conductor cross-sections, making it a versatile asset in electrical panels, workshops, and field jobs.
🛠️ Technical Specifications:
Model | 1930U-9 |
Tool Length | 9″ (230mm) |
Jaw Type | 3 Sections (0.5–6.0 mm²) |
Crimp Range | 20–10 AWG / 0.5–6.0 mm² |
Standards | DIN 46234 / 46237 / 46341 |
Application | Uninsulated terminals & connectors |
Material | Hardened steel with polymer grips |
