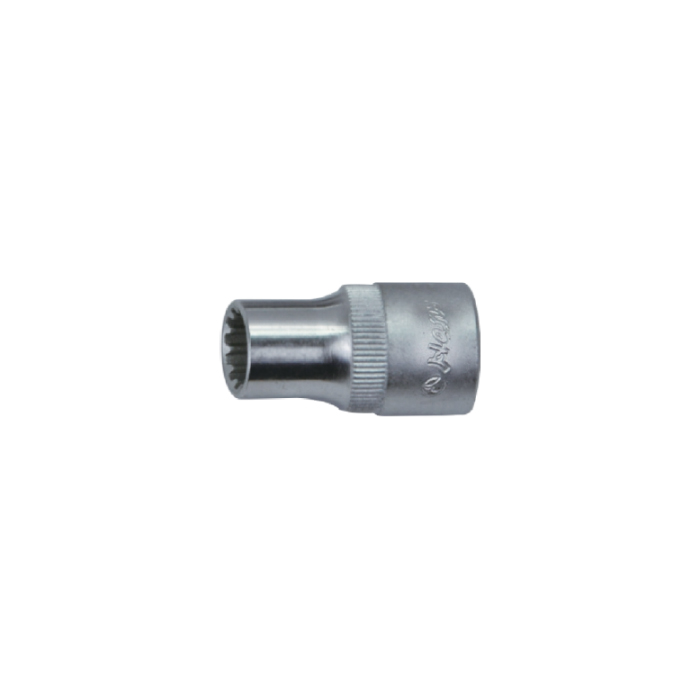

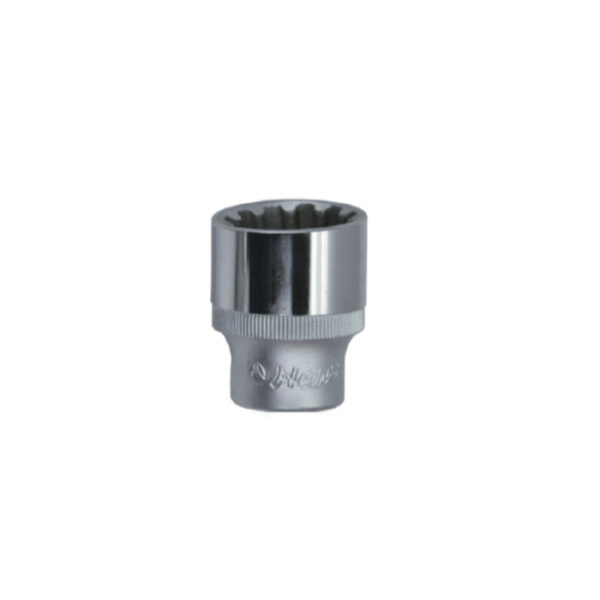

24P0M Spline Hand Socket- 1/4″ Drive
24P0M Spline Hand Socket- 1/4″ Drive
- Spline Hand Socket (Manual)- 1/4″ Drive
- Douilles spline drive
- Wazony z napędem wielowypustowym
- Vasen mit Keilantrieb
- Vasos de spline drive
- المزهريات محرك سبلين
- แจกันไดรฟ์ Spline
- 史普來 多用途套筒
- ® An-Lock drive (Superb Torque)
Feature
Spline drive has larger contact on the face of bolts, allowing for an easier time getting your car running. It also makes it less likely to damage the bolt, keeping you from having to pull over and search for a new one. Flat drive makes for faster engagement, but can make it tougher to get your car started. Make sure to use flat drive when starting a car in bad weather or when stalled out on a hill.
1/4"DR - 24P0M
| 24P0M mm | D1 mm | D2 mm | L mm |  g |  pcs |
|---|---|---|---|---|---|
| 5 | 8 | 11.85 | 25 | 10 | 50 |
| 6 | 9.6 | 11.85 | 25 | 10 | 50 |
| 7 | 10.6 | 11.85 | 25 | 10 | 50 |
| 8 | 11.85 | 11.85 | 25 | 10 | 50 |
| 9 | 13 | 13 | 25 | 12 | 50 |
| 10 | 14.5 | 14.5 | 25 | 15 | 50 |
| 11 | 16 | 16 | 25 | 18 | 50 |
| 12 | 17 | 17 | 25 | 20 | 50 |
| 13 | 18 | 18 | 25 | 22 | 50 |
| 14 | 19.5 | 19.5 | 25 | 26 | 50 |
| 15 | 21 | 21 | 25 | 26 | 50 |
Profile of SURFACE DRIVE SOCKET
The SPLINE DRIVE SOCKET is designed by standard of MS-33787 and MIL-W-8982.
In the beginning, SPLINE SHAFT is designed in professional parts of vehicle, equipment and military.
And recently yars widely used in safety nut and multi-shape nuts such as 6-point, 12-point, square, SPLINE, XZN and E-STAR…etc.
