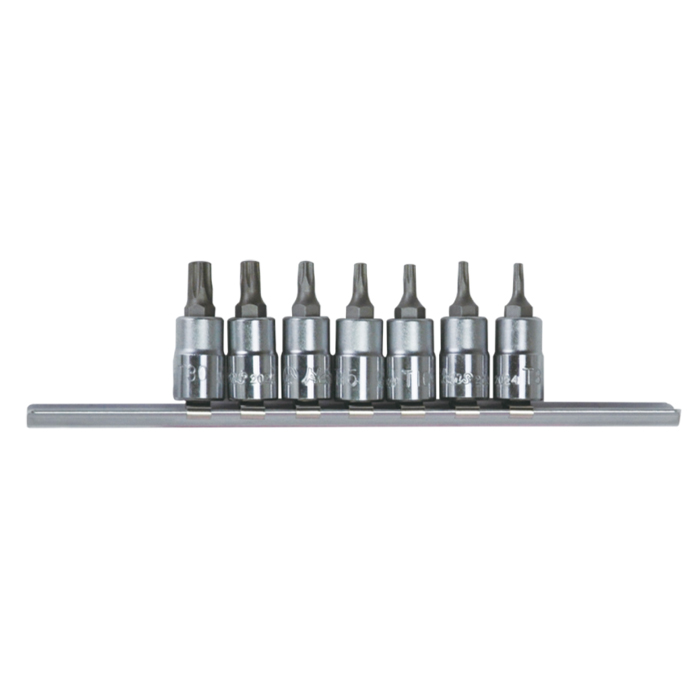

260255-7C-Penta Star Plus Bit Socket Set-¼” Drive- 7 Pcs
260255-7C: ¼” Drive 7-Piece Penta Star Plus Bit Socket Set(5-Lobe Tamper-Proof)
- Jeu de douilles tournevis
- Zestaw kluczy nasadowych
- Schraubendreher-Einsatz-Satz
- Juego de vaso destornilladores
- مجموعة مقبس مفك البراغي
- ชุดดอกไขควง
- 起子套筒組
- DIN 3120- ISO 1174
260255-7C is a professional-grade 7-piece Penta Star Plus Bit Socket Set engineered for high-precision security MRO (Maintenance, Repair, and Operations). This set features the advanced 5-Lobe Tamper-Proof (IPR) profile on a universal ¼” Square Drive platform. Designed for modern automotive and electronic security fasteners that require a 5-point interface with a central pin, the 260255-7C is supplied on a specialized Socket Rail (7C Clamp) for rapid access and streamlined tool trolley organization.
Feature
B2B Procurement & Workshop ROI
Specialized Service Capability: The 260255-7C provides the specific geometry required for specialized European and Japanese vehicle components, eliminating the risk of damaging expensive 5-lobe fasteners with incorrect 6-point tools.
High-Torque Durability: The S2-steel-to-Cr-V-socket interface outlasts standard bits, providing a superior ROI through extended tool life and reduced fastener stripping.
Professional Organization: The metal case architecture is designed for high-volume workshops, keeping specialized security bits organized and ready for immediate deployment.
| 7PCS | 260255-7C |
|---|---|
| 20255 | TS10, TS15, TS20, TS25, TS27, TS30, TS40 |
BLISTER CARD : GW= 8.5KGS  = 48 SETS/ 0.73' | M260260 |
Information
- Penta Star Plus (IPR) Geometry: This bit socket set utilizes a 5-point elliptical profile with a precision-drilled center hole. This mechanical logic allows the tool to seat fully over the security pin of 5-lobe “Pentalobe” or “Torx Plus Tamper-Resistant” fasteners, preventing unauthorized access and ensuring 100% torque engagement.
- Hybrid Material Construction:
- Bits: Forged from Premium S2 Tool Steel and heat-treated to an optimal Rockwell hardness (HRC 58–62) for maximum torsional endurance.
- Sockets: Manufactured from Chrome Vanadium (Cr-V) with a high-polish finish for superior structural integrity and corrosion resistance.
- ¼” Square Drive Interface: The ¼” drive platform is optimized for the precision torque ranges required for smaller security fasteners (10IPR to 40IPR) commonly found in automotive sensors, fuel injection systems, and high-end electronics.
