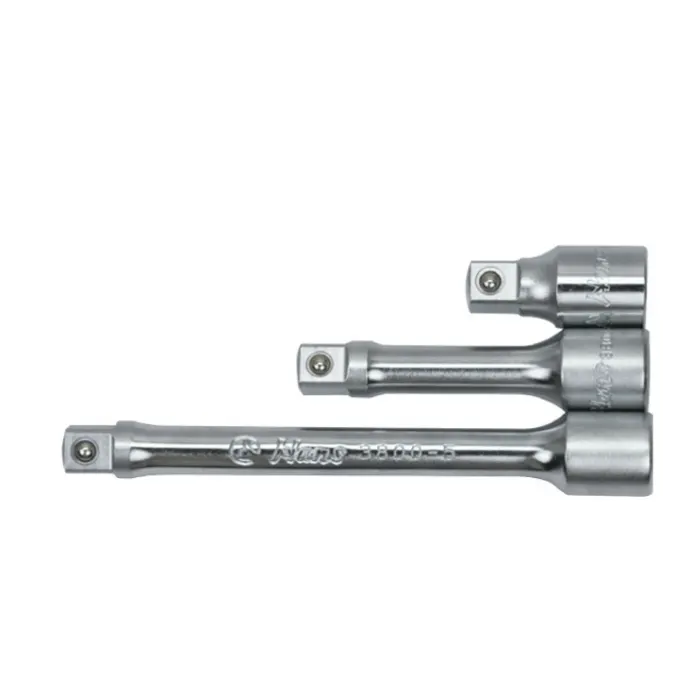

3863-11 ⅜” Drive Extension Bar Set (3 Pcs)

Rapid Finger-Run Knurled Bands

• Free-Thread Run-Down: Once a bolt is broken free, using a full ratchet swing can be slow. The raised cross-hatch knurling along the shank allows technicians to spin fasteners in and out rapidly using only their thumb and forefinger.
• Oil & Solvent Grip: Prevents slipping during finger-turning, even when working with hands coated in motor oil, transmission fluid, or coolant.

2. Spring-Loaded Ball Retention Mechanism

• Drop Prevention: Sockets remain mechanically locked onto the male (凸 3/8″) drive anvil via a hardened, spring-loaded steel detent ball, eliminating the risk of sockets falling into blind engine bays or operating industrial equipment.
• Secure Ratchet Coupling: The female (凹 3/8″) end incorporates precision-broached detent grooves on all four internal walls, ensuring positive lock-up on any standard 3/8″ ratchet, sliding T-bar, or breaker bar anvil.

3. Optimized 3-Step Length Hierarchy

• 40 mm (1-5/8″) Stubby Bar(3800-02): Provides just enough clearance to prevent ratchet heads from scratching rocker covers or intake plenums in ultra-cramped spaces.
• 75 mm (3″) Mid-Reach Bar(3800-3) The industry standard for brake caliper mounting bolts, alternator brackets, and general chassis maintenance.
• 150 mm (6″) Deep-Well Bar(3800-6) Clears water pump pulleys, thermostat housings, and recessed subframe fasteners with zero torsional twist.

What specific lengths are included in the HANS 3863-11 set?

The 3863-11 set contains three core lengths: the 40 mm

• 75 mm + 150 mm = 225 mmtotal extension
• 40 mm + 75 mm = 115 mmtotal extension
• 40 mm + 75 mm + 150 mm = 265 mmtotal extension

. All three bars feature a 3/8″ square female input and a 3/8″ square male output (凸 ⅜″ * 凹 ⅜″).

Can these extension bars be connected together for longer reach?

Yes. Because each extension bar features matching 凸 ⅜″ male and 凹 ⅜″ female drive ends with precision ball-detent grooves, they can be securely coupled together in series

to navigate complex mechanical obstructions.

What is the purpose of the knurling on the extension bar shaft?

The cross-hatch knurled band provides a high-friction tactile surface. It allows mechanics to quickly spin threaded fasteners in or out using their fingertips without needing to swing the ratchet handle, saving time during assembly and teardown.

Are the bars in the 3863-11 set covered under international manufacturing standards?

Yes. Forged from high-grade Chrome Vanadium steel and heat-treated under strict quality controls in Taiwan, every bar meets and exceeds international DIN 3123 and ISO 3316 torsional strength specifications.
