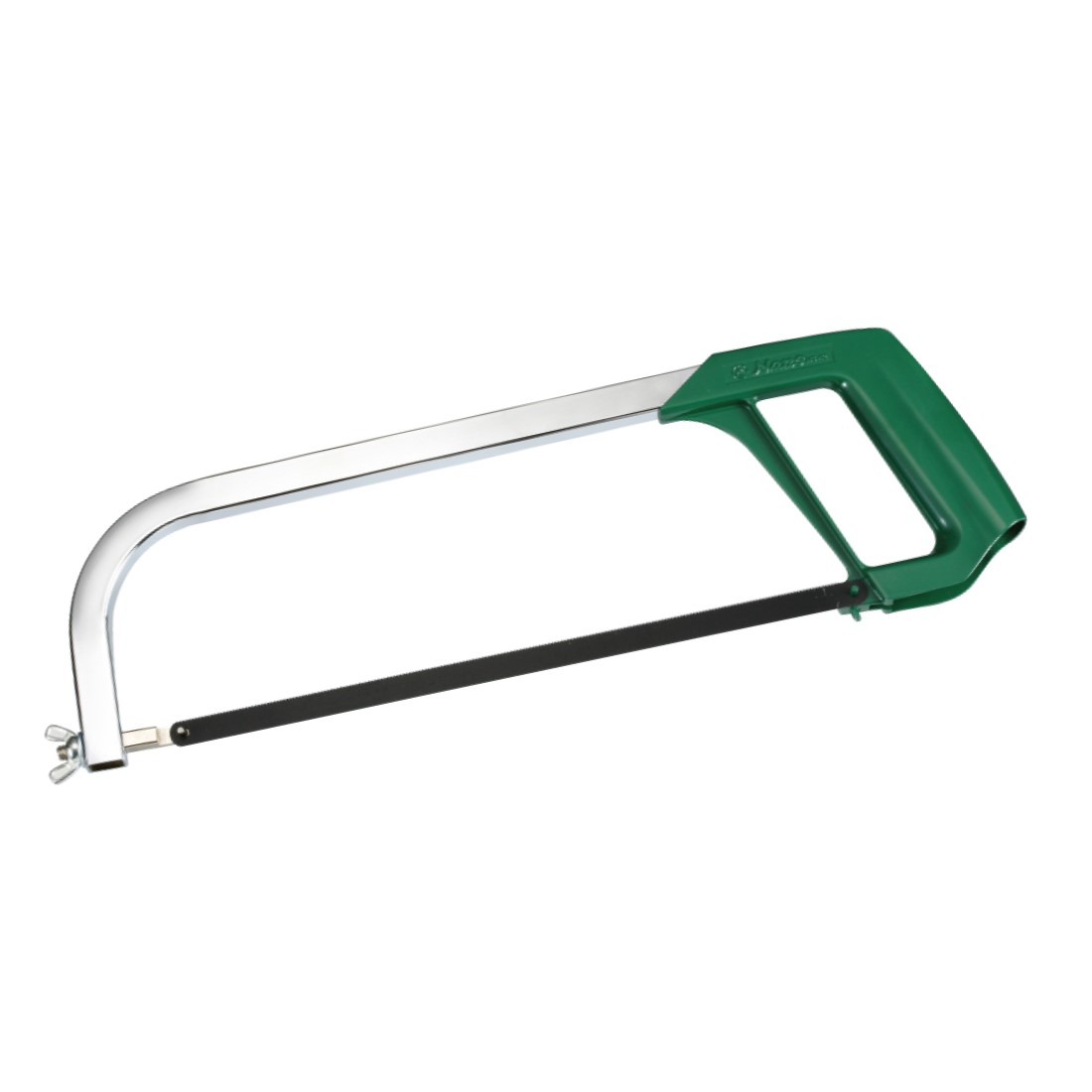

5104-12 Deluxe 12″ Hacksaw | Heavy-Duty Frame

SKU 5104-12 Category Construction Specialty Applied / Automotive Tag Hacksaw

ITEM NO.	SIZE inch/mm	W mm	W1 mm	L mm	g	pcs
5104-12	12"/ 300	90	95	425	600	6
5105-12	12"/ 300	95	95	420	600	6

Construction & Mechanical Truth

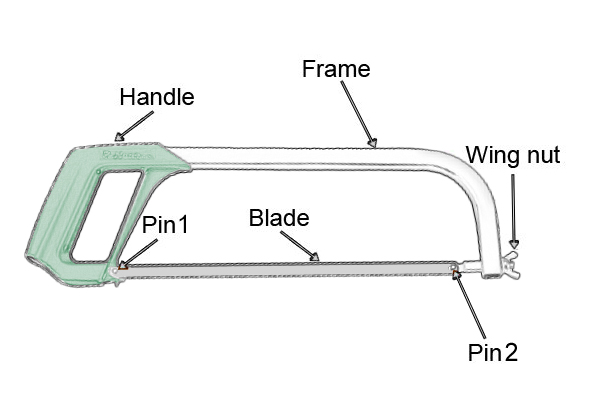

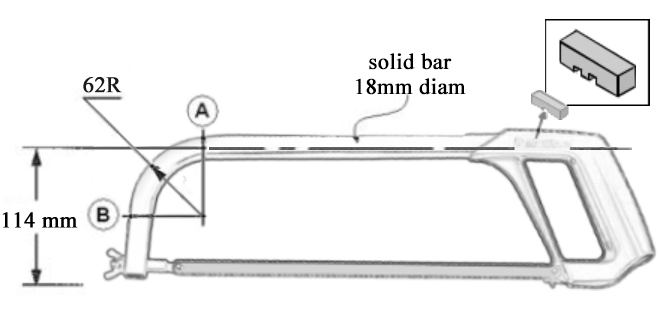

Heavy-Duty Reinforced Frame: The chassis is constructed from high-tensile steel designed to sustain maximum blade tension. This “Structural Truth” prevents blade twisting, which is the primary cause of uneven cuts and snapped blades.
Ergonomic Comfort Grip: Features a deluxe PP + TPR dual-material handle. The rubberized over-mold provides a high-friction grip that absorbs vibration, protecting the technician’s hand during long-duration cutting tasks.
Integrated Hand Guard: The handle geometry includes a built-in guard to protect the user’s knuckles from accidental impact against the workpiece.
Precision Tension System: Equipped with an easy-to-use wing-nut or knob adjustment, allowing the technician to fine-tune the blade tension for different materials (High-tension for steel, medium for PVC).

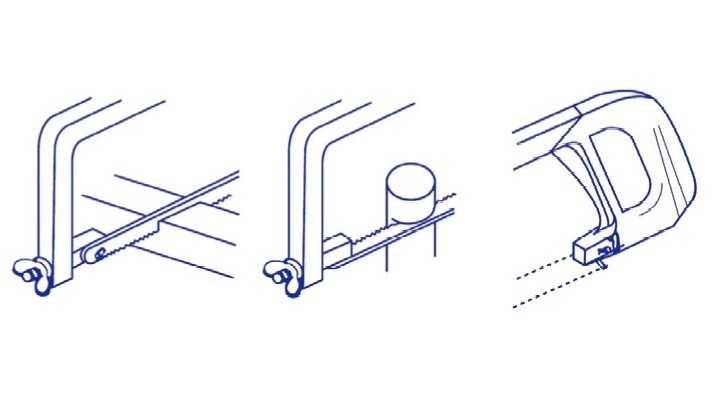

Dual-Angle Blade Mounting: Allows the blade to be set at 0° for standard vertical cuts or 45° for flush-cutting applications near flat surfaces.
