53622-Multi-Purpose Hydraulic Gear and Bearing Puller Set
53622-Multi-Purpose Hydraulic Gear and Bearing Puller Set
- Multi-Purpose Hydraulic Gear and Bearing Puller Set
- Coffret extracteur hydraulique polyvalent pour engrenages et roulements
- Universeller hydraulischer Abzieher-Satz für Lager und Zahnräder
- Juego de extractor hidráulico multifunción para engranajes y rodamientos
- Conjunto extrator hidráulico multifuncional para engrenagens e rolamentos
- Kit estrattore idraulico multifunzione per ingranaggi e cuscinetti
- Zestaw hydrauliczny ściągacza wielofunkcyjnego do kół zębatych i łożysk
- Többcélú hidraulikus lehúzó készlet fogaskerekekhez és csapágyakhoz
- Multifunctionele hydraulische trekker set voor tandwielen en lagers
- Многофункциональный гидравлический съемник для шестерен и подшипников
- مجموعة ساحب تروس ومحامل هيدروليكي متعددة الاستخدامات
- 多用途液壓齒輪與軸承拔取器套組
- 多功能液压齿轮和轴承拉拔器套装
- 多目的油圧ギア・ベアリングプーラーセット
- 다목적 유압 기어 및 베어링 풀러 세트
- ชุดเครื่องมือดึงเฟืองและตลับลูกปืนไฮดรอลิกอเนกประสงค์
- Çok Amaçlı Hidrolik Dişli ve Rulman Çektirme Seti
- Auto Tools/ Specialty
Feature

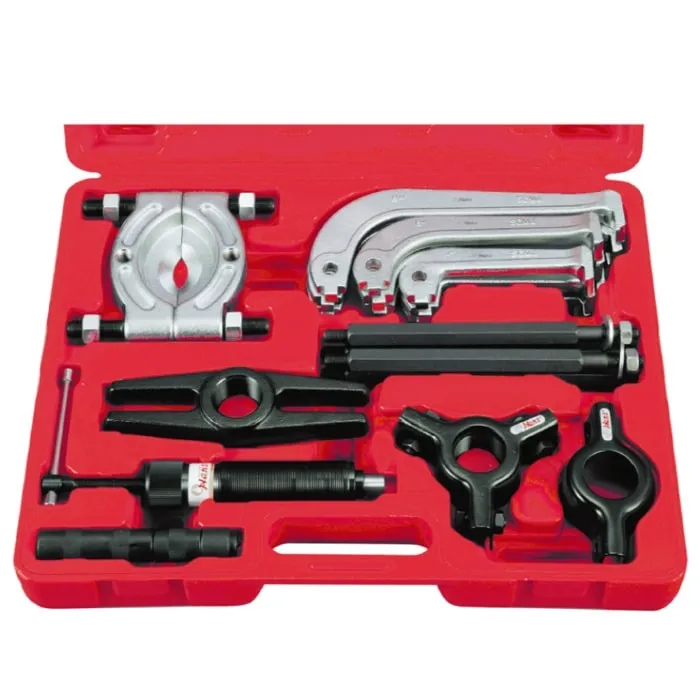

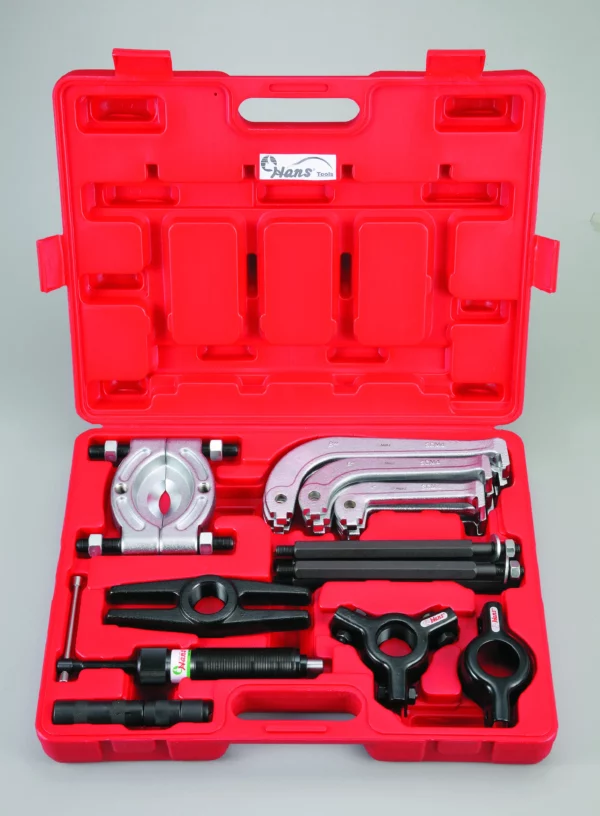

Hydraulic Puller Set – 10 Ton Capacity
This 10T hydraulic puller set is designed for external pulling tasks with a capacity of 50–250mm and a pulling depth up to 300mm. Ideal for removing gears, bearings, pulleys, and bushings in automotive and industrial applications.
Set Includes:
- 10-ton hydraulic ram

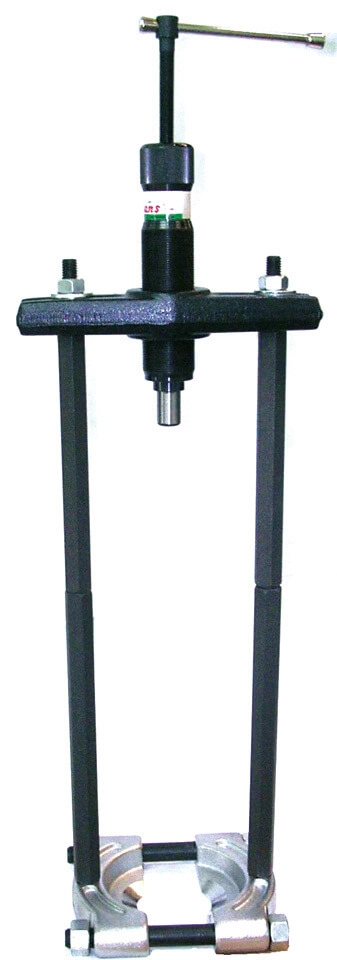

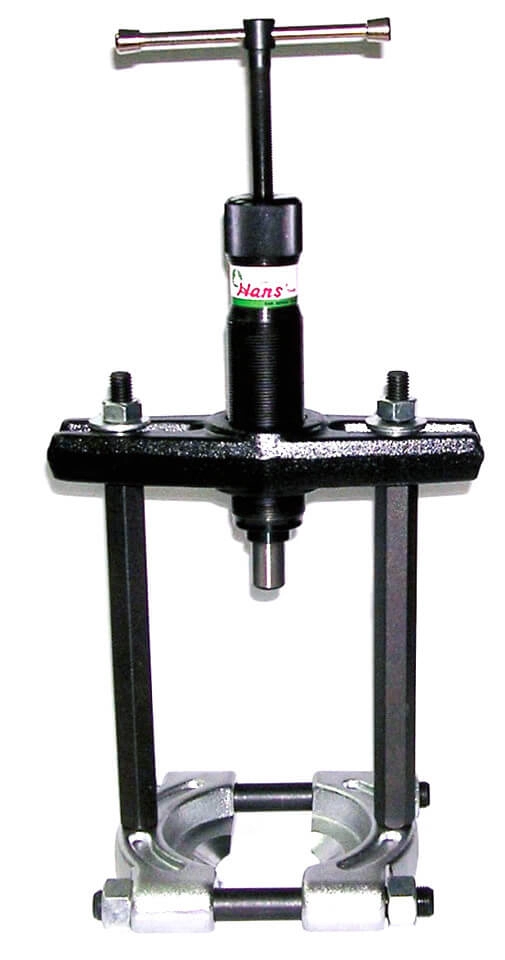

- Bearing separator (capacity up to 105mm)

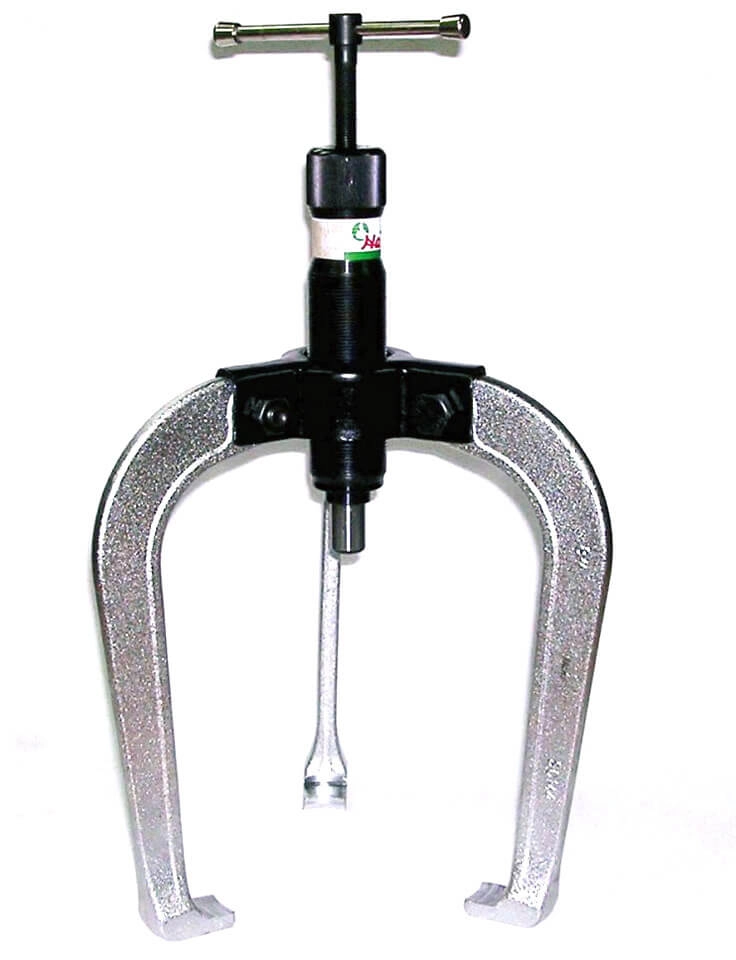

- 2 × 2-arm puller heads
- 1 × 3-arm puller head
- 3 puller legs: 120mm, 170mm, 225mm
- 2 main puller rods: 185mm
- 2 extension rods: 235mm
- 2 extension rods for hydraulic ram
- Center adaptor
- Packaging:
- Supplied in a heavy-duty blow-molded case (500 x 400 x 120mm)
Net weight: 16 kg
| Description | Details |
|---|---|
| Product Name | Multi-Purpose Hydraulic Gear and Bearing Puller Set |
| Pulling Capacity | CrMo Steel, φ37.7mm, L160mm, 16T ((1-½” dia) = 38.1 mm diameter |
| Leg Length | Up to 10 Tons (varies by model) |
| Extension Rods | 2” (50mm), 4” (100mm), 8” (200mm) – Carbon Steel |
| Puller Heads | Twin Head, Triple Head – Heat Treated Steel |
| Center Adaptor | L: 1-¼” (32mm), Carbon Steel, HRC 38–40 |
| Beam | CrMo / Carbon Steel, HRC 38–42 |
| Bearing Separator | CrMo drop forged, HRC 40–45, 75–105mm capacity |
| Main Rods | CrMo drop forged, HRC 40–45, 75–105mm capacity |
| Carrying Case | Heavy-duty blow-molded plastic case |
| Applications | Pulling gears, bearings, pulleys, bushings in automotive, industrial maintenance |
| Part No. 8000-1SET | Hydraulic Ram, CrMo, φ37.7mm, L160mm x16T (1-½” dia) = 38.1 mm diameter |
| Part No. 8002 | Ram Ring |
| Part No. 8004 | 3pcs, Leg L: 4” (100mm), CrMo, HRC 40–45 |
| Part No. 8006 | 3PCs, Leg L: 6” (150mm), CrMo, HRC 40–45 |
| Part No. 8008 | 3PCs, Leg L: 8"(200mm), CrMo, HRC 40–45 |
| Part No. 8011 | 1PC, Ram Parts, CrMo, HRC 40–45 |
| Part No. 8012 | 1PC, Twin Head |
| Part No. 8013 | 1PC, Center Adapter, L: 1-¼” (32mm), Carbon Steel, HRC 38–40 |
| Part No. 8014 | 1PC, Extension Rod, L: 2” (50mm), Carbon Steel |
| Part No. 8015 | 1PC, Extension Rod, L: 4” (100mm), Carbon Steel, HRC 38–40 |
| Part No. 9013 | 1PC, Triple Head |
| Part No. 9014 | 1PC, Beam, CrMo & Carbon Steel, HRC 38–42 |
| Part No. 9015 | 1 Set, Bearing Separator & Bolts, CrMo Drop Forged, HRC 40–45, Capacity 75–105mm, Bolt ⅝”x18T |
| Part No. 9016 | 2 PCs, Main Rod, L: 8” (200mm) |
| Part No. 9017 | 2 PCs, Extension Rod, L: 8” (200mm), Carbon Steel |
Blow Case: 500*400*120mm | 1 Set/ GW= 16 KGs |
