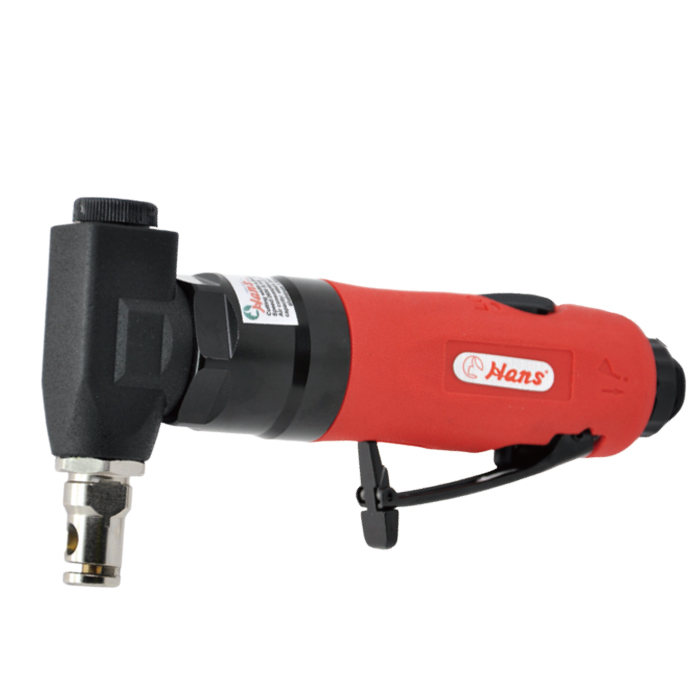

81926 Air Nibbler | 3,500 SPM High-Speed Metal Cutter

Technical Architecture & Pneumatic Logic

• 3,500 SPM High-Frequency Stroke: The internal piston provides rapid vertical movement, allowing the air nibbler to glide through cold-rolled steel (up to 1.2mm) and aluminum (up to 1.6mm) with minimal operator effort.
• Tight Radius Contour Cutting: Unlike straight shears, the 81926 air nibbler can cut intricate curves and circles with a tight radius. The punch design allows the tool to change direction instantly within the cut.
• Distortion-Free Metal Fabrication: Because the tool removes a small “slug” of material (the kerf) as it moves, it does not put lateral pressure on the surrounding metal, preserving the flat profile of the workpiece.
• Ergonomic Paddle Trigger: Features a sensitive lever start for precise speed control. This allows the technician to start slow on a marked line before reaching full cutting speed.

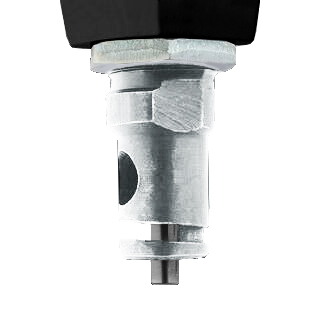

• Hardened Steel Punch and Die: The “teeth” of the cutting mechanism are manufactured from heat-treated alloy steel to maintain sharpness and withstand the friction of high-speed metal removal.

B2B Procurement & Workshop ROI

• Reduced Post-Cut Finishing: The clean edge produced by the air nibbler significantly reduces the time required for filing or grinding, lowering the labor cost per project.
• Material Versatility: Optimized for use in automotive MRO (Maintenance, Repair, and Operations) for cutting out rusted floor pans or trimming body panels for custom fitment.
• Industrial Durability: Built for the high-cycle demands of professional fabrication shops, the 81926 offers a long service life with simple maintenance of the punch and die set.

FAQ Section

How does an air nibbler differ from an air shear? An air shear cuts like a pair of scissors, which can often bend the edges of the metal. The 81926 air nibbler removes tiny bits of metal as it goes, which means the metal stays perfectly flat and you can cut much tighter curves and shapes.

What air pressure is required for the 81926? This air nibbler operates best at the standard industrial pressure of 90 PSI (6.2 Bar). It features a 1/4″ NPT air inlet, making it compatible with the same hoses used for your impact wrenches or ratchet handles.

Can I use this tool to start a cut in the middle of a panel? Yes. You simply need to drill a small pilot hole (large enough for the nibbler head to fit through). Once inserted, the air nibbler can cut out any internal shape or window without having to start from the edge of the sheet.
