81967 Air Hydraulic Riveter – 2.4 to 4.8mm Rivet Capacity | Lightweight & Efficient Design
81967 Compact Air HyDraulic Riveter – 2.4–4.8mm Capacity with Ergonomic Grip
- Remachadora Neumática 81967 – 2.4 a 4.8mm, Diseño Compacto
- Riveteuse Pneumatique 81967 – 2,4 à 4,8mm, Design Léger
- Pneumatischer Nietgerät 81967 – 2,4–4,8mm, Kompaktes Modell
- Nitownica Pneumatyczna 81967 – 2.4–4.8mm, Ergonomiczna
- 81967 氣動液壓拉釘槍 – 適用2.4–4.8mm，輕巧機型
- 81967 气动液压拉钉枪 – 支持2.4–4.8mm，轻量化设计
- ماكينة برشام هوائية 81967 – من 2.4 إلى 4.8 مم، تصميم مدمج
- Rebitador Pneumático 81967 – 2,4 a 4,8mm, Modelo Leve
- Máy bắn đinh tán khí nén 81967 – 2.4–4.8mm, thiết kế gọn nhẹ
- เครื่องยิงหมุดลม 81967 – ขนาด 2.4–4.8 มม. ใช้งานง่าย
- Impact Wrench- Pneumatic Power Instruction
- 半自動氣動拉帽槍
NOSE PIECE : M4, M5, M6, M8, M10
Operating Pressure : 60~95 PSI
| ITEM NO. | RIVET CAPACITY inch/mm | MAX. RIVET CAPACITY AL. & STEEL/ STAINLESS mm | TRACTION POWER LBS/KGS | STROKE LENGTH mm | AVG. DLR CONSUMPTION CFM |
|---|---|---|---|---|---|
| 81977 | 3/32"~1/4"/ 2.4~6.4 | 6.4/ 6.4 | 3300/ 1498 | 15.8 | 4.4 |
| 81967 | M4~M10 | M10/ M4 | 3638/ 1650 | 10 | 1.5 |
| ITEM NO. | AIR PRESSURE PSI/BAR | AIR INLET INCH | AIR HOSE ID | OVERALL LENGTH LxH |  KGS |  pcs |
|---|---|---|---|---|---|---|
| 81977 | 90 PSI 6.2 BAR | 1/4" | 3/8 | 275X296 | 2.11 | 6 |
| 81967 | 90 PSI 6.2 BAR | 1/4" | 1/4 | 190X270 | 1.63 | 10 |
Feature
- Rivet Size Range: 2.4mm, 3.2mm, 4.0mm, 4.8mm (³⁄₃₂”–³⁄₁₆”)
- Ideal for aluminum and steel rivets
- Compact, lightweight design for workshop or field use
- Smooth trigger action for user comfort
- Balanced center of gravity to reduce operator fatigue
- Durable alloy body with HansTools green finish
- Compatible with standard air compressors (6.3 bar)
- Designed for daily maintenance, panel work, and assembly
- Made in Taiwan – built with HansTools’ industrial-grade quality
📘 Professional Product Description:

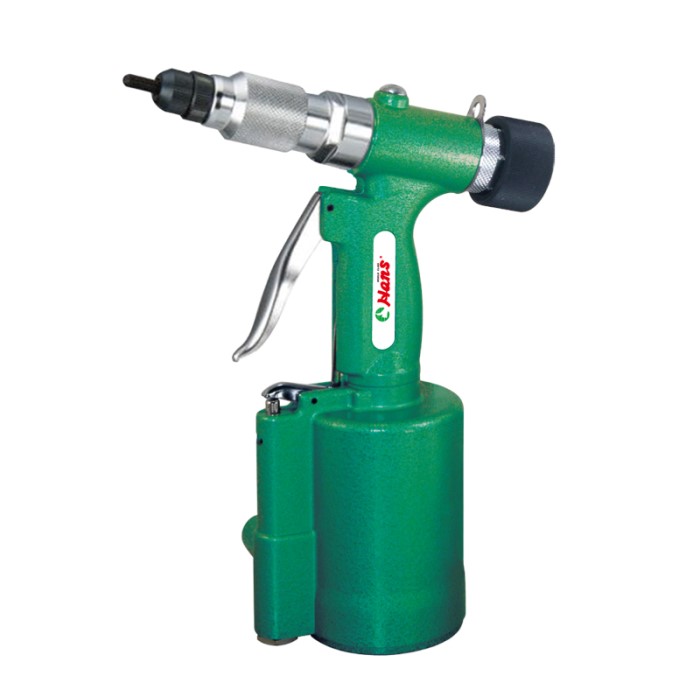

The HansTools 81967 Air Hydraulic Riveter offers a compact and ergonomic solution for light to medium-duty riveting jobs. Supporting rivet sizes from 2.4mm to 4.8mm, it delivers consistent performance across aluminum and steel applications.
Its lightweight design and well-balanced structure make it ideal for continuous use in auto repair shops, HVAC installation, metalwork, and general maintenance. The smooth pull action and easy trigger control help reduce strain on the operator while delivering reliable fastening results.
Proudly made in Taiwan and built for professionals, the 81967 combines portability with precision.
