81977 Heavy-Duty Air Hydraulic Riveter – 2.4 to 6.4mm Capacity | 16mm Stroke | 17000N Power
SKU
81977
Categories Pneumatic Impact Wrench/ Air Tools, Air Tools, Construction Specialty Applied / Automotive
Tags Air Tools, Riveter

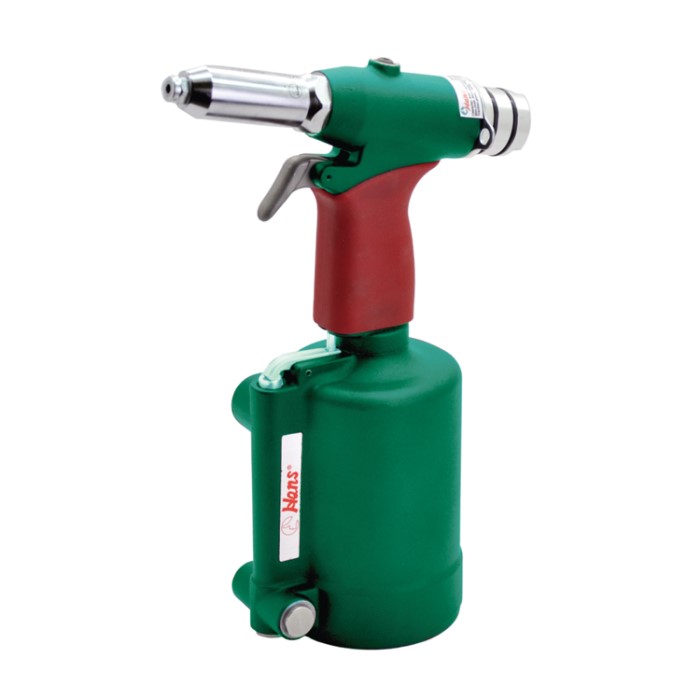

81977 Industrial Air Hydraulic Riveter – 6.4mm Max Capacity, 17000N Traction, CE Certified
- Remachadora Hidráulica Neumática 81977 – Capacidad 2.4–6.4mm
- Riveteuse Pneumatique Hydraulique 81977 – 2,4 à 6,4 mm
- Industrieller Druckluftnieter 81977 – Für 2,4–6,4 mm Nieten
- Przemysłowa Nitownica Pneumatyczno-Hydrauliczna 81977 – 2.4–6.4 mm
- 81977 工業級氣動液壓拉釘槍 – 適用2.4~6.4mm
- 81977 工业级气动液压拉钉枪 – 适用2.4~6.4mm
- ماكينة برشام هوائية هيدروليكية صناعية 81977 – 2.4 إلى 6.4 مم
- Máy bắn đinh tán khí nén thủy lực 81977 – 2.4–6.4mm
- Rebitador Hidráulico Pneumático 81977 – 2,4 a 6,4 mm
- เครื่องยิงหมุดไฮดรอลิกแบบลม 81977 – ขนาด 2.4–6.4 มม.
- Impact Wrench- Pneumatic Power Instruction
- 氣動油壓鉚釘機
NOSE PIECE :
³ᐟ₃₂”/ 2.4mm, ⅛”/ 3.2mm, ⁵ᐟ₃₂”/ 4mm
³ᐟ₁₆”/ 4.8mm, ¼”/ 6.4mm
ITEM NO. | RIVET CAPACITY inch/mm | MAX. RIVET CAPACITY AL. & STEEL/ STAINLESS mm | TRACTION POWER LBS/KGS | STROKE LENGTH mm | AVG. DLR CONSUMPTION CFM |
---|---|---|---|---|---|
81977 | 3/32"~1/4"/ 2.4~6.4 | 6.4/ 6.4 | 3300/ 1498 | 15.8 | 4.4 |
81967 | M4~M10 | M10/ M4 | 3638/ 1650 | 10 | 1.5 |
ITEM NO. | AIR PRESSURE PSI/BAR | AIR INLET INCH | AIR HOSE ID | OVERALL LENGTH LxH | ![]() KGS | ![]() pcs |
---|---|---|---|---|---|---|
81977 | 90 PSI 6.2 BAR | 1/4" | 3/8 | 275X296 | 2.11 | 6 |
81967 | 90 PSI 6.2 BAR | 1/4" | 1/4 | 190X270 | 1.63 | 10 |
Feature
Rivet Size Range: 2.4 / 3.2 / 4.0 / 4.8 / 6.4mm (³⁄₃₂”–¼”)
- Compatible with aluminum, steel, and stainless steel (up to 4.8mm)
- Powerful traction force: ~17,000 N (adjust if exact spec available)
- Tool stroke: 16 mm (confirm if 14 or 16 mm)
- Operating pressure: 6.3 bar (90 psi)
- Lightweight aluminum body with HansTools green finish
- Quick-release nosepiece and spent mandrel collector
- Ergonomic grip and smooth trigger mechanism
- CE Certified by TÜV Rheinland Taiwan
- Designed for automotive, industrial, and assembly line work
- Made in Taiwan – Durable, precise, and workshop-ready
