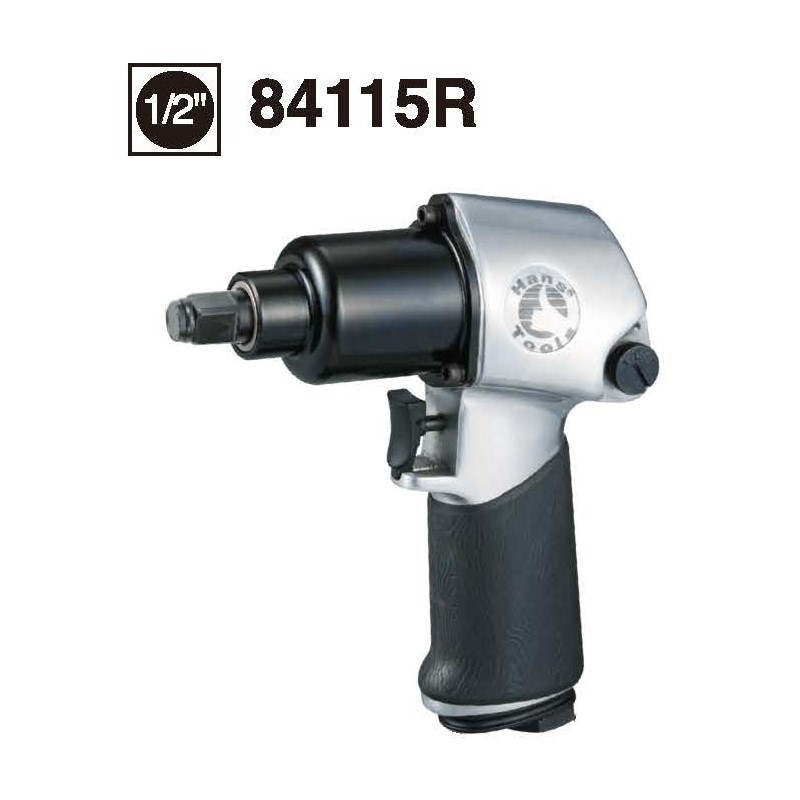

84115R Heavy-Duty ½″ Air Impact Wrench – Twin Hammer, 5-Speed, Reversible
84115R – Heavy-Duty ½″ Reversible Air Impact Wrench with Twin Hammer Mechanism
- 84115R Heavy-Duty 1/2″ Air Impact Wrench – Reversible
- Llave de Impacto Neumática 1/2″ de Alta Potencia 84115R
- Clé à Chocs Pneumatique 1/2″ 84115R – Haute Puissance
- 84115R Druckluft-Schlagschrauber 1/2″ – Profi-Ausführung
- مفتاح صدمات هوائي ثقيل 1/2 بوصة – موديل 84115R
- บล็อกลมขนาด 1/2″ รุ่น 84115R – ทนงานหนัก
- 84115R 重型 1/2″ 气动冲击扳手 – 正反转设计
- 工業級氣動沖擊扳手 超大出力 1/2″方頭
- 雙鎚裝置結構, Twin-Hammer
- Impact Wrench- Pneumatic Power Instruction
ITEM NO. | DRIVE | MAX TORQUE FT · LB(Nm) @ 5 SEC | MINI TORQUE FT · LB(Nm) | STDBOLT SIZE inch/mm | FREE SPEED R.P.M. | MECHANISM |
---|---|---|---|---|---|---|
83110 | ![]() | 200 ft-lbs 271 N . m | 20-125 ft-lbs 27-170 N . m | ⅜"/ M12 | 10000 | JUMBO HAMMER |
EXHAUST | AVG.DLR CONSUMPTION CFM | AIR PRESSURE BAR/ PSI | AIR INLET inch | AIR HOSE ID | OVERALL LENGTH inch(mm) | ![]() KGS | ![]() pcs |
---|---|---|---|---|---|---|---|
83110 HANDLE W/MUFFLER | 2.5 | 6.2/ 90 | ¼ | ⅜ | 5.5"/ 139 | 1.35 | 12 |
Feature
84115R Heavy-Duty Air Impact Wrench delivers power, precision, and durability in demanding workshop conditions. Featuring a twin hammer impact mechanism, this tool provides high torque output with smooth operation — ideal for tire service, suspension jobs, and general mechanical repair.
With a 5-position power regulator, forward/reverse switch, and an ergonomic grip, the 84115R is engineered for professional automotive technicians seeking both control and reliability in daily use.
Technical Specifications
Feature | Value |
Model | 84115R |
Drive Size | ½″ Square Drive |
Impact Mechanism | Twin Hammer |
Max Torque Output | Approx. 610 Nm (~450 ft.lb) |
Working Torque | 135~380 Nm |
Free Speed | 7,000 RPM |
Air Inlet | ¼″ NPT |
Air Pressure | 90 PSI (6.3 bar) |
Air Consumption | ~113 L/min (4.0 CFM avg.) |
Weight | Approx. 2.3 kg |
Housing Type | Composite / Aluminum Alloy |
Power Regulator | 5-Speed Dial with F/R Switch |
Key Features
Twin Hammer Design – Delivers balanced torque and smooth operation
5-Speed Power Regulator – Precision control for different fastening tasks
Ergonomic Handle Grip – Reduces fatigue during extended use
Reversible Direction Switch – Easy one-hand forward/reverse operation
Heavy-Duty Durability – Built to withstand workshop abuse
Professional Output – Ideal for tire shops, mechanics, and fleet maintenance
Applications
- Tire changing & automotive service
- Mechanical assembly & disassembly
- Industrial maintenance
- Truck & fleet repair centers
- Workshop technicians and mobile repair teams
