84800-Torque Limiting Impact Extension Bar-½”Drive
84800- Torque Limiting Impact Extension Bar- ½”Drive
-
- 84800 Torque Limiting Impact Extension Bar – 1/2″ Drive
- 繁中: 84800 1/2″DR 固定扭力氣動沖擊接桿
- ES: 84800 Barra prolongadora de impacto con límite de par – encastre 1/2″
- FR: 84800 Rallonge d’impact à couple limité – entraînement 1/2″
- DE: 84800 Drehmomentbegrenzende Schlagschrauber-Verlängerung – 1/2″ Antrieb
- PL: 84800 Przedłużka udarowa z ogranicznikiem momentu – napęd 1/2″
- PT-BR: 84800 Prolongador de impacto com limitador de torque – encaixe 1/2″
- AR: 84800 وصلة تأثير مع محدد عزم – بقياس 1/2″
- TH: 84800 ด้ามต่อบล็อกกระแทกแบบจำกัดแรงบิด – ขนาดขับ 1/2″
- RO: 84800 Prelungitor de impact cu limitator de cuplu – pătrat 1/2″
- HU: 84800 Ütvecsavarozó hosszabbító nyomatékhatárolóval – 1/2″ hajtás
- DIN 3121- ISO 1174
- 氣動沖擊接桿固定扭力
- Wheel Service Tools
| ITEM NO. | L (mm/inch) | MAX TORQUE | COLOR OF RING |  g |  pcs |
|
|---|---|---|---|---|---|---|
| N.m. | ft-lbs | |||||
| 84800-90 | 200/8" | 90 | 65 | GREEN | 196 | 5 |
| 84800-100 | 200/8" | 100 | 75 | BLACK | 202 | 5 |
| 84800-110 | 200/8" | 110 | 80 | YELLOW | 212 | 5 |
| 84800-120 | 200/8" | 120 | 90 | RED | 226 | 5 |
| 84800-135 | 200/8" | 135 | 100 | BLUE | 246 | 5 |
| 84800-150 | 200/8" | 150 | 110 | ORANGE | 264 | 5 |
| 84800-160 | 200/8" | 160 | 120 | GRAY | 286 | 5 |
| 84800-175 | 200/8" | 175 | 130 | PURPLE | 306 | 5 |
| 84800-190 | 200/8" | 190 | 140 | WHITE | 332 | 5 |
| 84800-200 | 200/8" | 200 | 150 | LIGHT GREEN | 346 | 5 |
Feature
- Made by Chromium-molybdenum alloy steel (chrome. moly)
is an alloy used for high pressure and temperature use. It is used in oil and gas, energy, construction and the automotive industries because of its corrosion resistance and high-temperature and tensile strength. Torque Limiting Impact Extension Bar for wheel service

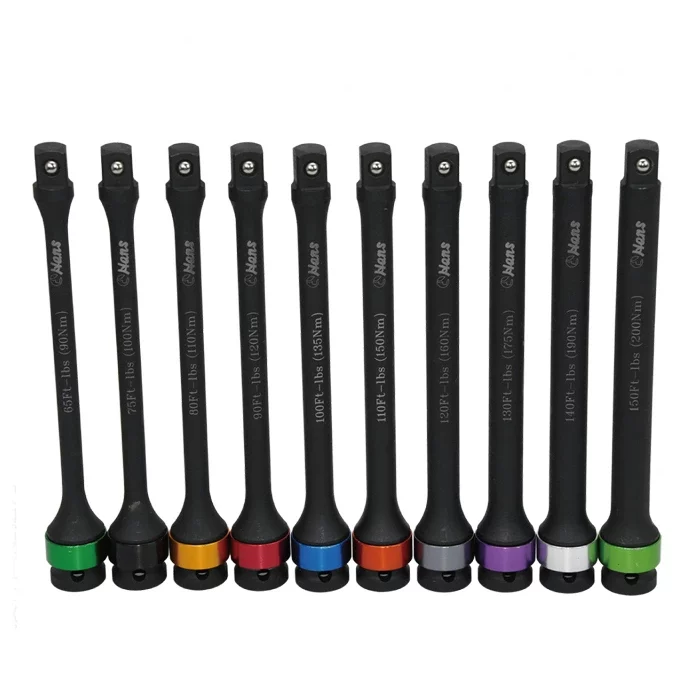

The 84800 Torque Limiting Impact Extension Bar is a 1/2″ drive extension designed to control torque when using a pneumatic impact wrench on wheel nuts and other critical fasteners. Each bar flexes at a preset torque value so the tool stops adding force once the target torque is reached, helping reduce over-tightening and stud damage.
All models are 200 mm (8″) long for comfortable access to wheel nuts and tight spaces. The extension bars are manufactured from Chromium-Molybdenum alloy steel (Cr-Mo), providing high tensile strength and good resistance to impact, heat and wear in professional workshop use.

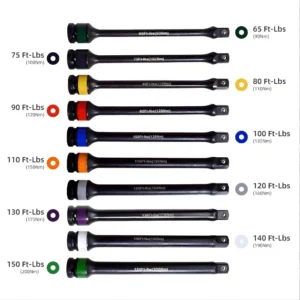

The 84800 series is color-coded by torque rating for quick identification during wheel service. Torque values range from 90 N·m to 200 N·m (65–150 ft-lbs), covering the most common passenger car and light commercial vehicle wheel nut specifications.
Each bar is designed to fit standard 1/2″ drive impact sockets and complies with DIN 3121 / ISO 1174 drive standards.
