88304M/A Impact Socket | 1″ Drive 6-Point Cr-Mo

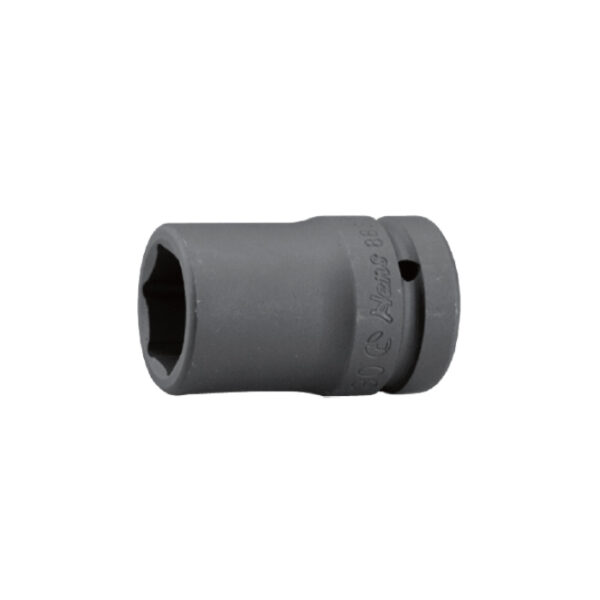

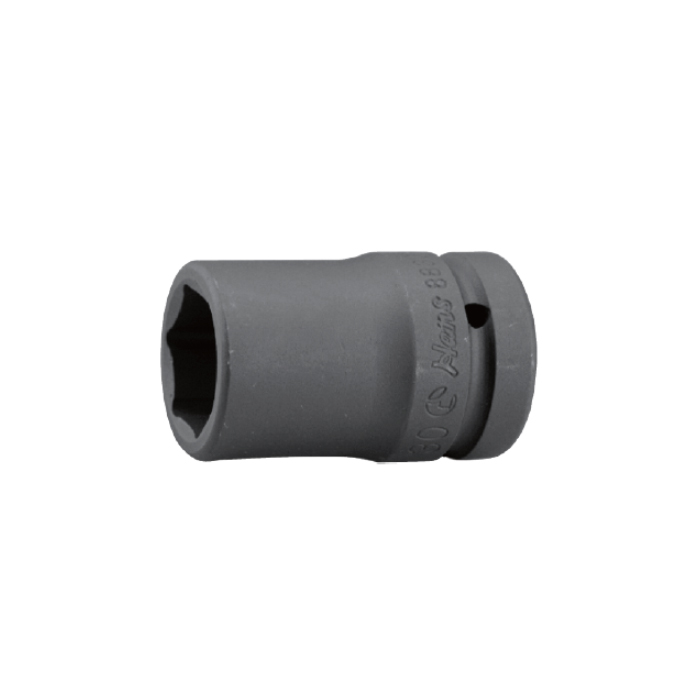

88304M/A Series: 1″ Drive Professional 6-Point Industrial Impact Socket
- Douilles impact parois fine-pour seemi profande
- Gniazda udarowe cienkościenne – do półgłębokich
- Dünnwandige Schlagnüsse – für halbtief
- Vaso de muralla
- مقابس صدمات رقيقة الجدار – شبه عميقة
- เต้ารับกระแทกผนังแบบบาง – สำหรับกึ่งลึก
- 薄壁中長度的沖擊套筒
- An-Lock Drive
- DIN 3121- ISO 1174
Impact Socket (Model 88304M/A Series) is an industrial-grade 1″ square-drive tool designed for maximum torque transmission in heavy-duty mechanical environments. Manufactured by Hans Tools, this Impact Socket is the primary solution for technicians servicing heavy plant machinery, maritime propulsion systems, and large-scale structural steel connections. Forged from high-density Chrome Molybdenum (Cr-Mo) steel, the 88304 is engineered to withstand the continuous, high-energy percussive cycles of 1″ drive impact wrenches without fracturing or deforming.

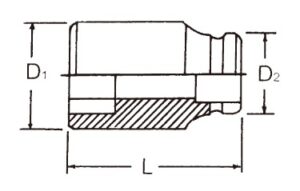

| 88304M (mm) | 88304A (inch) | D1 (mm) | D2 9mm) | L (mm) |  g |  pcs |
|---|---|---|---|---|---|---|
| 24 | 15/16 | 38 | 50 | 80 | 580 | 1 |
| 27 | 1-1/16 | 41 | 50 | 80 | 580 | 1 |
| 29 | 1-1/8 | 44 | 50 | 80 | 600 | 1 |
| 30 | 1-3/16 | 45 | 50 | 80 | 620 | 1 |
| 32 | 1-1/4 | 48 | 52 | 80 | 640 | 1 |
| 33 | 1-5/16 | 49 | 52 | 80 | 650 | 1 |
| 34 | 50 | 52 | 80 | 660 | 1 | |
| 35 | 1-3/8 | 51 | 52 | 80 | 670 | 1 |
| 36 | 53 | 52 | 80 | 690 | 1 | |
| 38 | 1-1/2 | 55 | 52 | 80 | 710 | 1 |
| 41 | 1-5/8 | 58 | 52 | 80 | 720 | 1 |
Feature
88304M/A Impact Socket is built for mission-critical industrial durability:
- High-Mass Chrome Molybdenum (Cr-Mo) Construction: The primary advantage of this Impact Socket is its metallurgical superior elasticity. Cr-Mo provides a higher fatigue resistance than standard steel, allowing the socket walls to absorb the violent energy of industrial impact tools while maintaining precise geometric tolerances.
- Lobular 6-Point (Hex) Profile: The internal geometry is designed to grip the flat sides of the fastener rather than the corners. This “Surface Drive” technology prevents the rounding of massive, high-cost fasteners, which is vital in sectors where a stripped bolt can cause days of production downtime.
- Through-Hole and Ring-Groove Security: Engineered for safety, the drive end features a transverse hole for a locking pin and a groove for an O-ring. This ensures the socket remains mechanically locked to the drive tang during high-RPM overhead work or underwater salvage operations.
B2B Procurement & Industrial Plant ROI
- Essential for Mining & Oil & Gas MRO: This Impact Socket is a staple for Maintenance Superintendents and Field Service Leads who manage fleets of excavators, haul trucks, and industrial compressors.
- Industrial Black Phosphate Coating: The surface is chemically treated to provide permanent corrosion resistance against salt spray, chemical exposure, and high-humidity environments typical of offshore and heavy-industrial sites.
- Laser-Etched High-Visibility Markings: Large, high-contrast size identification allows for rapid tool selection from centralized tool cribs, supporting 5S Workplace Organization and reducing technician search time.
