88608MJ/A- Impact Socket Set-(8PCs)-1″ Drive
88608MJ/A Series: 1″ Drive 8-Piece Deep Impact Socket Set (Metric & SAE)
- Jeu de douilles impact
- Zestaw nasadek udarowych
- Schlagschrauber-Satz
- Juego de vaso impacto
- مجموعة مقبس الصدمات
- ชุดซ็อกเก็ตกระแทก
- DIN 3121- ISO 1174
- DIN 3129- ISO 2725-2
- 沖擊套筒組
- 大車輪圈專用組
- 氣動套筒 公制/英制 六角
- Steel Made Case
- M-Stands for Metric size
- A-Stands for Imperial size
- 88400M/A- Impact Socket – 1″ Drive
- 88405M/A- Budd Wheel Impact Socket- 1″ Drive

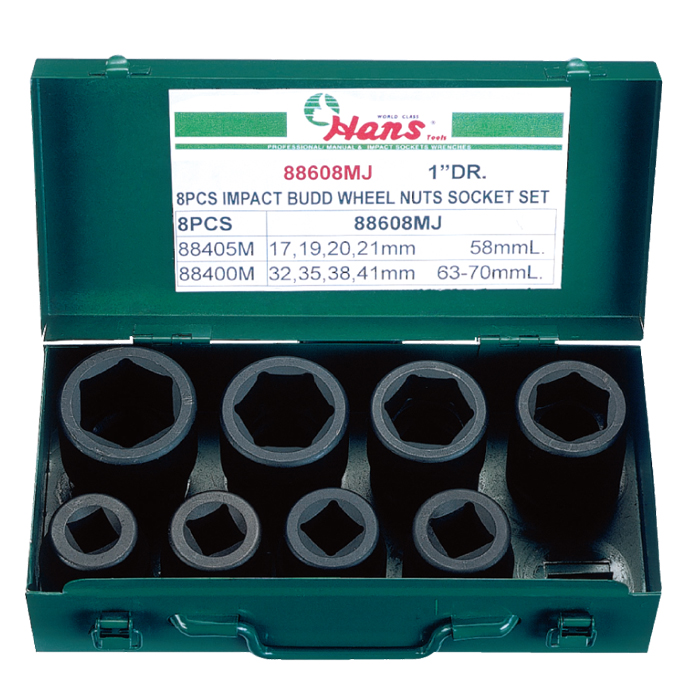

88608MJ/A is a specialized 8-piece impact socket set engineered specifically for the heavy-duty maintenance of Japanese trucks (1.5 tons to 4+ tons). This series is defined by the MJ/A regulation: the M components provide high-precision Metric sizing, while the A components provide Imperial (SAE) sizing. Forged from high-grade Chrome Molybdenum (Cr-Mo) steel, this set is designed to survive the extreme torque cycles generated by 1″ drive pneumatic impact wrenches and heavy-duty ratchet handles.
| ITEM NO. | 88608MJ | |
|---|---|---|
| 88400 | 32, 35, 38, 41mm (L=60-67mm) | |
| 88400 | 17, 19, 20, 21mm (L=58mm) | |
| APPLICATION | FOR ALL OF JAPANESE TRUCKS 1.5 TONS TO ABOVE 4 TONS | |
| METAL CASE : 290x140x85mm | 1SET= 6.2KGS, GW=26KGS/4 SETS |  =0.6' |
| ITEM NO. | 88608A | |
|---|---|---|
| 88400 | 1-1/16, 1-1/8, 1-3/16, 1-1/4, 1-5/16, 1-1/2 (L=60-67mm) |
|
| 88405 | 13/16, 15/16 (L=58mm) |
|
| APPLICATION | FOR ALL OF JAPANESE TRUCKS 1.5 TONS TO ABOVE 4 TONS | |
| METAL CASE : 290x140x85mm | 1SET= 6.2KGS, GW=26KGS/4 SETS | =0.6' |
Feature
Technical Architecture & Heavy-Duty Logic
- Deep-Wall Geometry: The extended length of the 88608MJ-A sockets allows for the engagement of fasteners on long threaded studs, a critical requirement for heavy vehicle wheel hubs and structural industrial bolts.
- Forged Chrome Molybdenum (Cr-Mo): Unlike standard chrome sockets which can shatter under impact, the Cr-Mo alloy is heat-treated to absorb shock. This material choice ensures the socket teeth maintain their profile without spreading or cracking under massive rotational stress.
- 6-Point High-Torque Opening: The 6-point design maximizes contact area between the socket and the fastener. This “flank drive” logic moves the pressure away from the corners of the nut, significantly reducing the risk of rounding off expensive industrial fasteners.
- 1″ Drive Security: Each socket features a cross-drilled hole for use with a locking pin and O-ring. This ensures the socket remains mechanically locked to the ratchet handle or impact anvil during high-vibration use.
- Corrosion-Resistant Black Phosphate Finish: Every component is treated with a specialized industrial coating that protects the steel from moisture, chemicals, and the abrasive debris found in heavy-duty workshops.
B2B Procurement & Workshop ROI
- Standardized Heavy-Duty Range: The 8-piece set is curated to include the most frequent metric sizes (e.g., 24mm to 41mm), ensuring technicians have the core tools for heavy truck and plant maintenance.
- Safety Compliance: Utilizing impact-rated Cr-Mo sockets significantly reduces the risk of workplace injuries caused by tool fragmentation, protecting both the operator and the machinery.
- Organized Metal Storage Case: Supplied in a reinforced steel case with a dedicated internal tray. This prevents tool migration and allows for rapid inventory confirmation at the end of a shift.
FAQ Section
Why is Chrome Molybdenum (Cr-Mo) used instead of Chrome Vanadium (Cr-V)? Cr-V is excellent for manual ratchet handle use but can be too brittle for 1″ drive impact loads. Cr-Mo is more “ductile,” meaning it can slightly flex under the massive “hammering” action of an impact wrench without shattering, making it the only safe choice for heavy-duty industrial impact work.
Are these sockets compatible with deep-recessed wheel nuts? Yes. The 88608MJ-A is a “Deep-Wall” series. The extended reach is specifically designed to clear long studs on commercial trucks and heavy equipment where a standard-depth socket would bottom out before reaching the nut.
How do I secure these to my 1″ drive impact wrench? These sockets are designed with a through-hole for a pin and a groove for an O-ring. For maximum safety in industrial environments, always use a locking pin to ensure the socket does not detach from the ratchet handle or impact driver during high-speed rotation.
