				Workshop Tool Trolley 7 Drawers – HQ Series with Locking Option | 9917HQ / 9917HQL
9917HQ / 9917HQL – Heavy‑Duty 7‑Drawer Workshop Tool Trolley
- Outils de voiture
 - Samochód narzędziowy
 - Werkzeugwagen
 - Carro De Herramientas
 - أدوات السيارة
 - รถเครื่องมือ
 - High Quality Tool Trolley Series/ Packing Details from the factory of HansTools

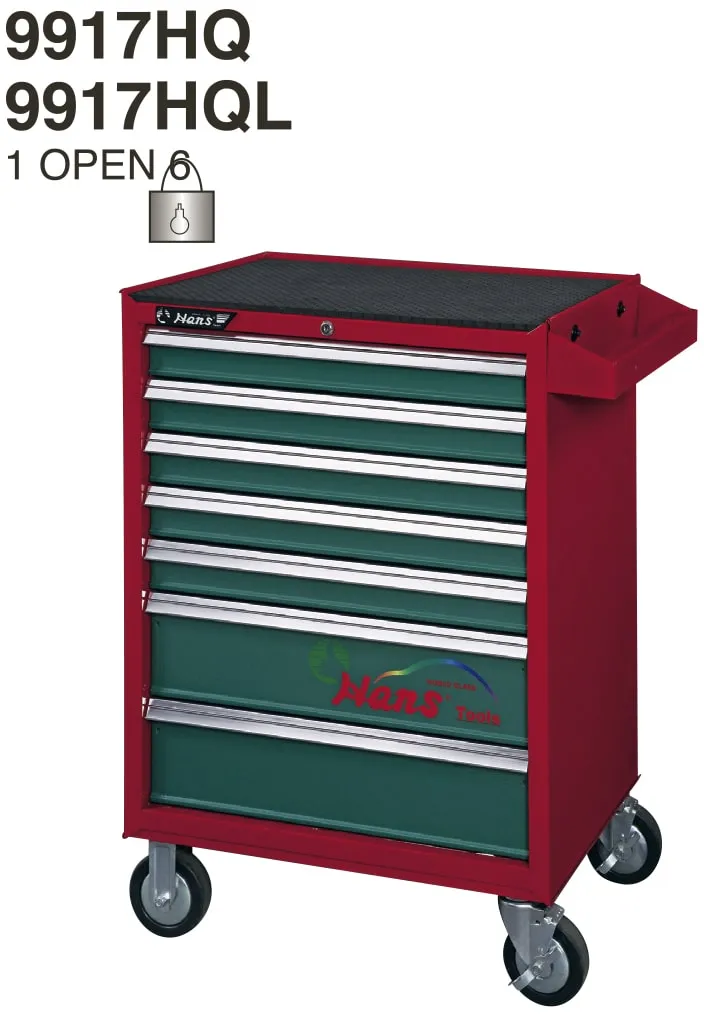

9917HQ/ 9917HQL TOOL TROLLEY CABINET- ROLL- WAGON

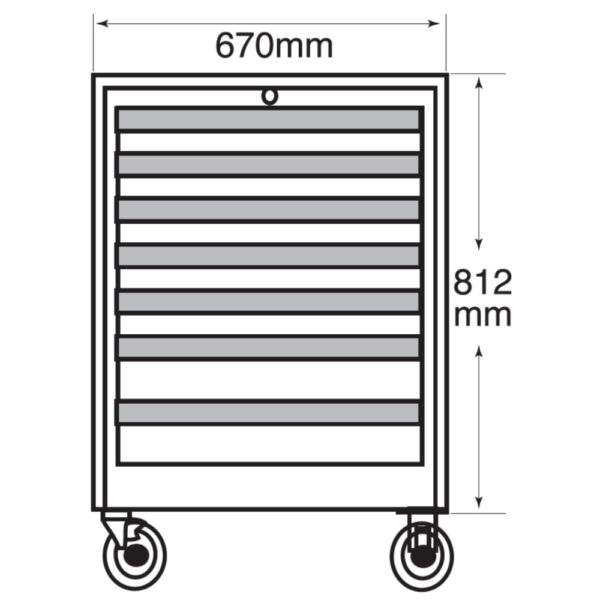

| ITEM NO. | LOCKING SYSTEM | Measure | W (mm)  | D (mm)  | H (mm)  | Cuft |
|---|---|---|---|---|---|---|
| 9917HQ | None | Overall | 670 | 460 | 812 | 12.24' 72kgs/ PC  |
| Overall+5" Casters | 670 | 460 | 960 | |||
| 5 Drawers | 576 | 410 | 75 | |||
| 2 Drawers | 576 | 410 | 154 | |||

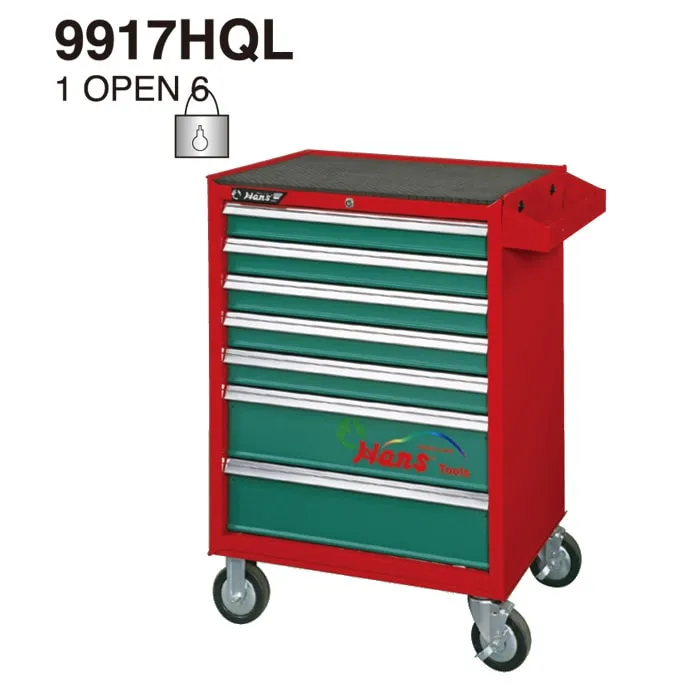

| 9917HQL | 1 drawer open, other 6 drawers LOCK  | Overall | 670 | 460 | 812 | 12.24' 74kgs/ PC  |
| Overall+5" Casters | 670 | 460 | 960 | |||
| 5 Drawers | 576 | 410 | 75 | |||
| 2 Drawers | 576 | 410 | 154 |
Feature
9917HQ/HQL Workshop Tool Trolley delivers unmatched durability and storage efficiency. Built with reinforced cold-formed steel panels and a heavy-duty work surface, it’s ideal for workshops needing rugged, organized tool storage.
- Model HQ: No locking system — open all drawers.
 - Model HQL: One-drawer-at-a-time patented locking for enhanced safety and stability.

Trolley boasts a powder-coated, metal frame that has a scratch resistant finish.
HQ Tool Trolley/Wagon features are the following statement.
- One piece forming Panel made of wagon body reinforced.
 - A crabwise post on upper portion extra to strengthen entire shape that against banging, and deforming; even provided a heavy working flatbed on the flap-top.
 - Hemmed edge for all drawers and body that adds safeguard that will harm not at all.
 - Patented internal locked-locking system for extra security and most conveniency.
 - The 410mm deep wagon drawers offer much more space.
 - Easy move the full ball bearing side on all drawers.
 - Each drawer with a designed switch for quick release.
 - Two-section of drawer fastener to keep it at a safe closing and not damage for drawer.
 - Electroplated aluminum handle with safe and prevent an injury.
 - The accuracy of cross point of cabinet are ±2mm.
