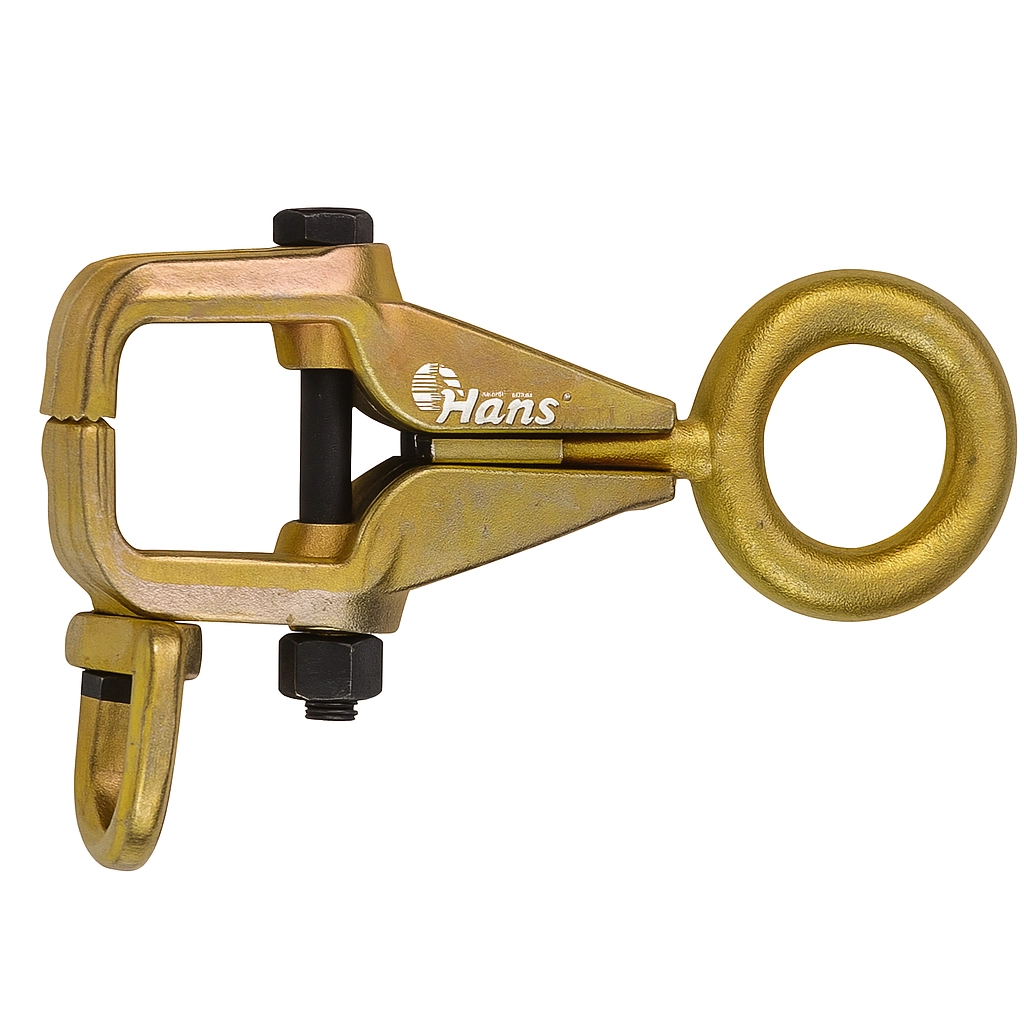

CC-23 Multi-Directional Pull Clamp
CC-23 Multi-Directional Pull Clamp – 2T (Cross) / 3T (Longitudinal), Narrow Space Use
- CC-23 Pull Clamp – 2T Cross / 3T Longitudinal, for Uneven Jaw Surfaces
- Abrazadera CC-23 – 2 Ton Transv. / 3 Ton Long., para Superficies Irregulares
- Grampo CC-23 – 2T Cruzado / 3T Longitudinal, para Mandíbulas Irregulares
- Pince de Traction CC-23 – 2T Transv. / 3T Long., pour Mâchoires Inégales
- Zugklemme CC-23 – 2T Quer / 3T Längs, für unebene Spannflächen
- Zacisk CC-23 – 2T Poprz. / 3T Podł., do Nierównych Powierzchni
- مشبك CC-23 – 2 طن عرضي / 3 طن طولي، للأسطح غير المستوية
- แคลมป์ CC-23 – 2 ตัน (ขวาง) / 3 ตัน (ยาว) สำหรับปากจับไม่เรียบ
- CC-23 張引夾 – 橫向2噸 / 縱向3噸，適用不平整表面
- CC-23 张引夹 – 横向2吨 / 纵向3吨，适用于不平整表面
- Auto Tools/ Specialty
| CLAMP | Operation Style | Special Use | Capacity (Cross) | Capacity (Longitudinal) |
|---|---|---|---|---|
| C1-1 | Single-Direction | Long jaw for narrow space | 1 Ton | |
| CC-3 | Single-Direction | Narrow space | 3 Tons | |
| CB-25 | Two-Direction | Cross & longitudinal pulling | 20 Tons | 5 Tons |
| CC-3N | Single-Direction | Narrow space, uneven jaw surface | 3 Tons | |
| CC-23 | Two-Direction | Narrow space, uneven jaw surface | 2 Tons | 3 Tons |
| CD-5 | Single-Direction | Standard body pull | 5 Tons | |
| CE-5 | Two-Direction | Standard body pull | 5 Tons | |
| CF-5 | Single-Direction | Panel and sheet metal pull | 5 Tons | |
| CF-35 | Two-Direction | Thin sheet panel, long jaw | 3 Tons | 5 Tons |
Feature
Key Features:
- Operation: Two-directional – suitable for both cross and longitudinal pulling
- Capacity: 2 Tons (cross), 3 Tons (longitudinal)
- Jaw Adaptability: Ideal for uneven or non-parallel surfaces
- Compact Build: Fits narrow and limited-access workspaces
- Forged Steel Construction: High-strength body with secure pull loop
- Precision Fit: Serrated jaws for maximum grip under high load
- Typical Use: Collision repair, structural straightening, automotive frame work
- Anti-Corrosion Finish: Extended service life in workshop environments
