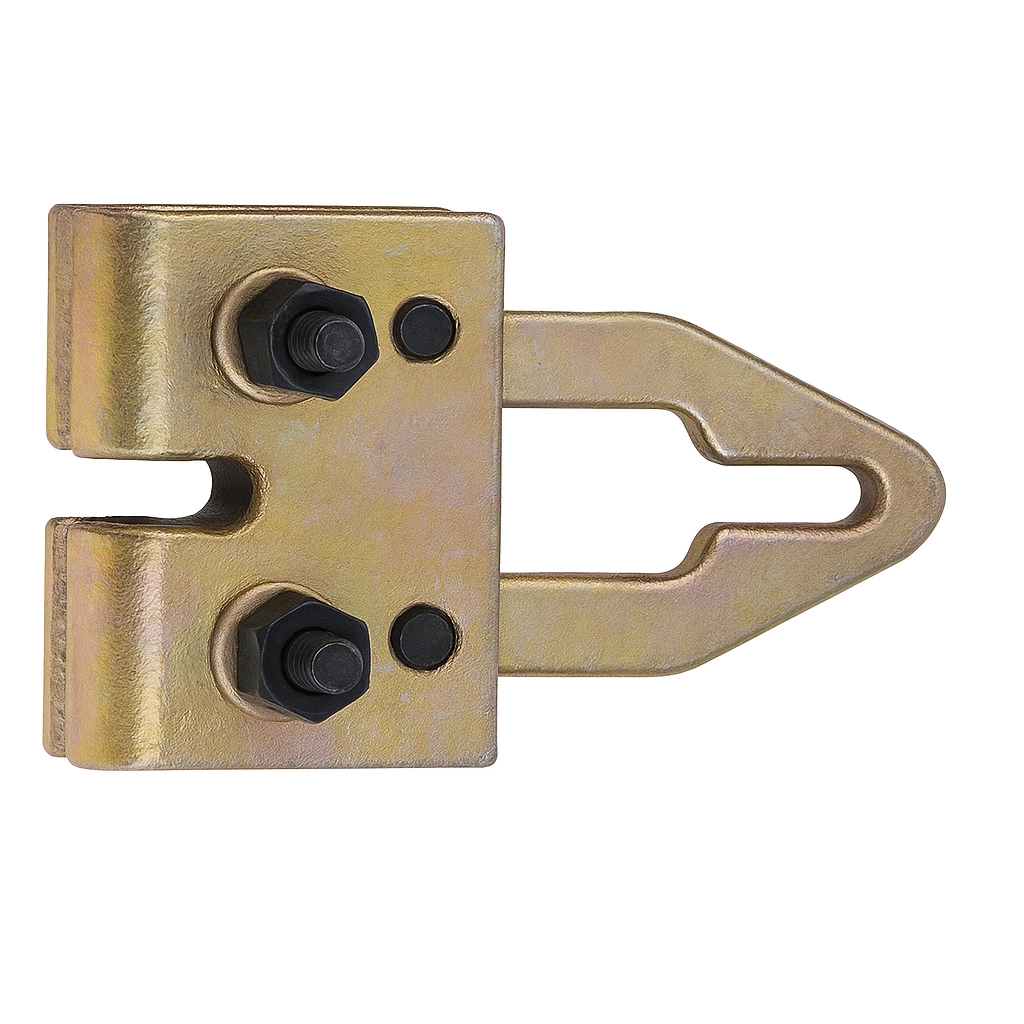

CF-5 Wide Jaw Panel Pull Clamp – 5 Ton Capacity
CF-5 Wide Jaw Panel Pull Clamp
- CF-5 Panel Pull Clamp – 5 Ton Capacity
- Abrazadera para Paneles CF-5 – Capacidad 5 Toneladas
- Grampo de Painel CF-5 – Capacidade de 5 Toneladas
- Pince de Traction pour Panneaux CF-5 – Capacité 5 Tonnes
- CF-5 Blechziehklemme – 5 Tonnen Tragkraft
- Zacisk CF-5 do Paneli – Udźwig 5 Ton
- مشبك سحب ألواح CF-5 – سعة 5 أطنان
- แคลมป์ดึงแผง CF-5 – รับน้ำหนัก 5 ตัน
- CF-5 板材拉拔夾 – 5 噸容量
- CF-5 板材拉拔夹 – 5 吨容量
- Auto Tools/ Specialty
Feature
Key Features:
- Rated Capacity: 5 Tons (5,000 kg)
- Wide Jaw Design: Suitable for panel and edge gripping
- Dual-Bolt Clamping: Ensures secure, non-slip hold under tension
- Low Profile: Ideal for flat surfaces and narrow access points
- Application: Used in auto body repair, frame straightening, sheet metal work
- Construction: Drop-forged steel with anti-corrosion finish
- Universal Fit: Compatible with chain and pulling systems
| CLAMP | Operation Style | Special Use | Capacity (Cross) | Capacity (Longitudinal) |
|---|---|---|---|---|
| C1-1 | Single-Direction | Long jaw for narrow space | 1 Ton | |
| CC-3 | Single-Direction | Narrow space | 3 Tons | |
| CB-25 | Two-Direction | Cross & longitudinal pulling | 20 Tons | 5 Tons |
| CC-3N | Single-Direction | Narrow space, uneven jaw surface | 3 Tons | |
| CC-23 | Two-Direction | Narrow space, uneven jaw surface | 2 Tons | 3 Tons |
| CD-5 | Single-Direction | Standard body pull | 5 Tons | |
| CE-5 | Two-Direction | Standard body pull | 5 Tons | |
| CF-5 | Single-Direction | Panel and sheet metal pull | 5 Tons | |
| CF-35 | Two-Direction | Thin sheet panel, long jaw | 3 Tons | 5 Tons |
