CSC-HD Heavy Duty Spring Compressor Tool-(Air Impact Use)
CSC-HD Heavy Duty Spring Compressor Tool-(Air Impact Use)
- Spring Compressor – Air Impact Use
- Compresseur de ressort – Utilisation avec clé à chocs
- Federspanner – Für Schlagschrauber
- Compresor de muelles – Para llave de impacto
- Compressor de molas – Para uso com chave de impacto
- Compressore molle – Per avvitatore a impulsi
- Ściągacz sprężyn – Do użycia z kluczem udarowym
- Rugóösszehúzó – Légkulcsos használatra
- Компрессор пружин – Для работы с ударным гайковертом
- ضاغط زنبرك – للاستخدام مع مفتاح الطرق الهوائي
- 彈簧壓縮器－適用氣動衝擊扳手
- 弹簧压缩器－适用于气动冲击扳手
- スプリングコンプレッサー – エアインパクト用
- 스프링 압축기 – 에어 임팩트 렌치용
- เครื่องบีบสปริง – ใช้ร่วมกับบล็อกลม
- Yay Kompresörü – Darbeli hava anahtarı ile kullanım
- Auto Tools/ Specialty
Feature
CSC-HD-5 – Heavy-Duty Pneumatic Coil Spring Compressor Set
What It’s For:
The CSC-HD-5 is a professional-grade spring compressor engineered for high-torque, heavy-load suspension systems. Designed for use with an air impact wrench or manual drive, it allows safe, fast compression of larger coil springs typically found in trucks, SUVs, 4x4s, and commercial vans.
Key Features:
- Maximum load capacity: 26,000 Nm – ideal for demanding workshop use
- Extended compression capacity: up to 317 mm
- Compatible with air impact tools for efficient operation
- Heavy-duty compressor shaft and reinforced yoke arms
- Includes interchangeable safety yokes to fit various spring sizes

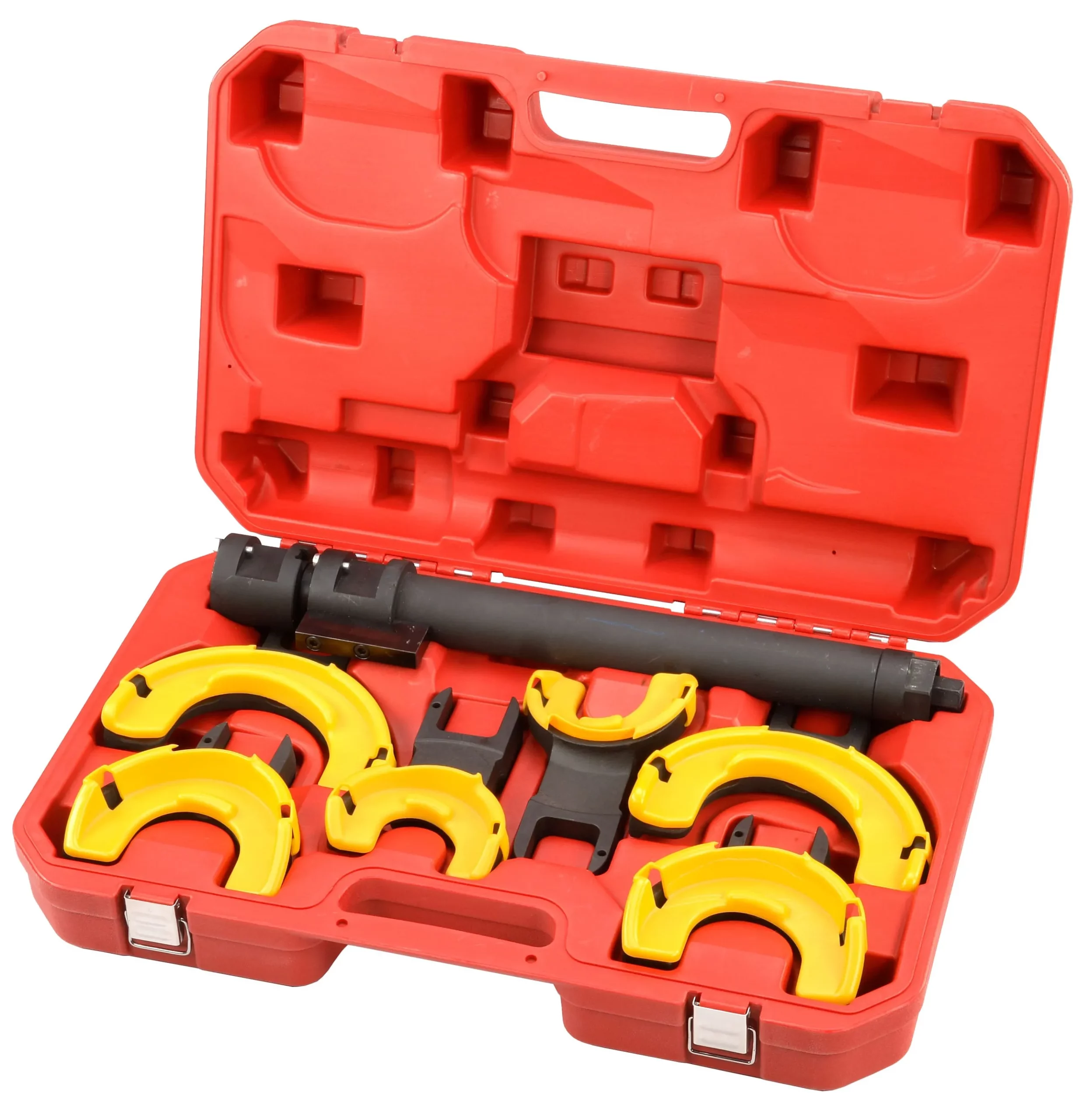

- Supplied in a blow-molded storage case for portability
- Covered by product liability insurance for user confidence
- Exceeds safety and load standards for commercial fleet maintenance

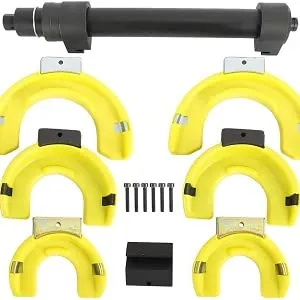

Included Components & Specs:
Description:
- Small C Jaw : Ø80–110 mm springs
- Medium C Jaw : Ø110–150 mm
- Large C Jaw : Ø145–195 mm
- Each jaw made from SCM440 + forged steel, phosphate coated
- Used across both HD-2 and HD-5 compressors
- Jaw covers made of Nylon 66 to protect spring lacquer
Component | Quantity | Approx. Weight | Spring Use Range |
Compressor Shaft | 1 pc |
| Max stroke: 317 mm |
Heavy-Duty Yoke Pair A | 1 pair | (2.1 kg) | Ø 90–140 mm |
Heavy-Duty Yoke Pair B | 1 pair | (2.2 kg) | Ø 130–180 mm |
Heavy-Duty Yoke Pair C | 1 pair | (3.1 kg) | Ø 175–225 mm (est.) |
Safety Blocks & Bolts | Full set | – | For secure lock-in |
Applications:
- MacPherson strut systems
- High-load suspension systems
- Off-road 4x4s, SUVs, commercial vans, and trucks
- Heavy-duty fleet service centers
