- Quick-connect couplings are a type of coupler used to connect two sections of a hose or pipe. They are often made with steel, brass or stainless steel depending upon their application. This type of connection is typically rated for use with a variety of fluids and has pressure limits that vary based on the material they’re made from.
- As per the availability of large number of various components, couplings have become an important section in every mechanical industry. They are devices with male (plug) and female (receptacle) ends utilized for connecting parts together. Couplings are generally designed according to the maximum working pressure and could be made of steel, brass or stainless steel depending upon the application and the type of fluid.
| ITEM NO. | SIZE |  g |  |  |
|---|---|---|---|---|

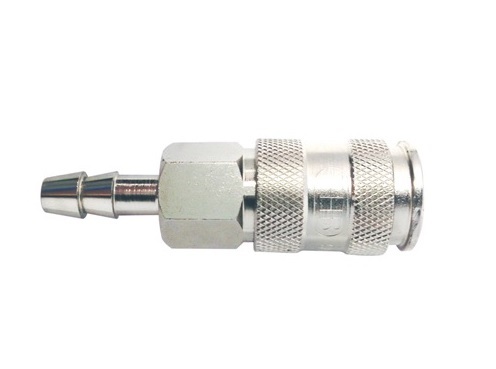

| 8511-2Q | 1/4" HOSE | 80 | 5 | 200 |
| 8511-25Q | 5/16" HOSE | 90 | 5 | 200 |
| 8511-3Q | 3/8" HOSE | 90 | 5 | 200 |
| 8511-4Q | 1/2" HOSE | 100 | 5 | 200 |
| 8512-2Q | 1/4" G | 80 | 5 | 200 |
| 8512-3Q | 3/8" G | 90 | 5 | 200 |
| 8512-4Q | 1/2" G | 100 | 5 | 200 |

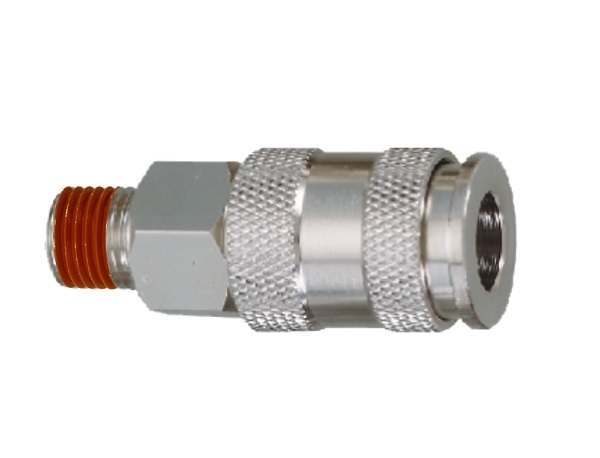

| 8513-2Q | 1/4" PT | 80 | 5 | 200 |
| 8513-3Q | 3/8" PT | 80 | 5 | 200 |
| 8513-4Q | 1/2" PT | 110 | 5 | 200 |

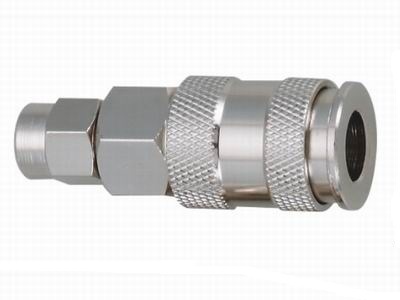

| 8514-2Q |  5x8mm | 90 | 5 | 200 |
| 8514-3Q | 6.5x10mm | 110 | 5 | 200 |
| 8514-4Q | 8x12mm | 140 | 5 | 200 |
| MAXIMUM PRESSURE 15kgf/cm2 (1.5MPa) | TEMPERATURE -20℃~+80℃ | |||
| ITEM NO. | SIZE | g | | |
|---|---|---|---|---|

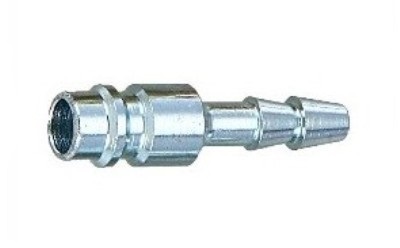

| 8511-2P | 1/4" HOSE | 30 | 10 | 400 |
| 8511-25P | 5/16" HOSE | 32 | 10 | 400 |
| 8511-3P | 3/8" HOSE | 34 | 10 | 400 |
| 8511-4P | 1/2" HOSE | 38 | 10 | 400 |

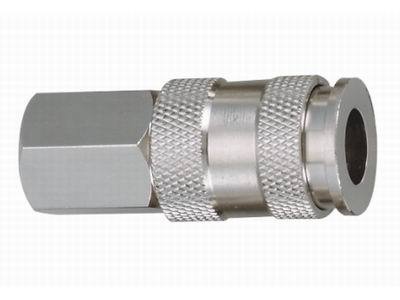

| 8512-2P | 1/4" G | 25 | 10 | 400 |
| 8512-3P | 3/8" G | 34 | 10 | 400 |
| 8512-4P | 1/2" G | 42 | 10 | 400 |

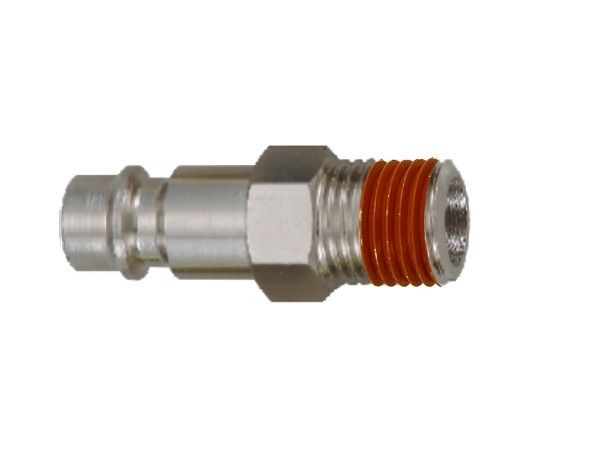

| 8513-2P | 1/4" PT | 25 | 10 | 400 |
| 8513-3P | 3/8" PT | 28 | 10 | 400 |
| 8513-4P | 1/2" PT | 50 | 10 | 400 |
| 8514-2P | 5x8mm | 22 | 10 | 400 |
| 8514-3P | 6.5x10mm | 22 | 10 | 400 |
| 8514-4P | 8x12mm | 28 | 10 | 400 |
| MAXIMUM PRESSURE 15kgf/cm2 (1.5MPa) | TEMPERATURE -20℃~+80℃ | |||
