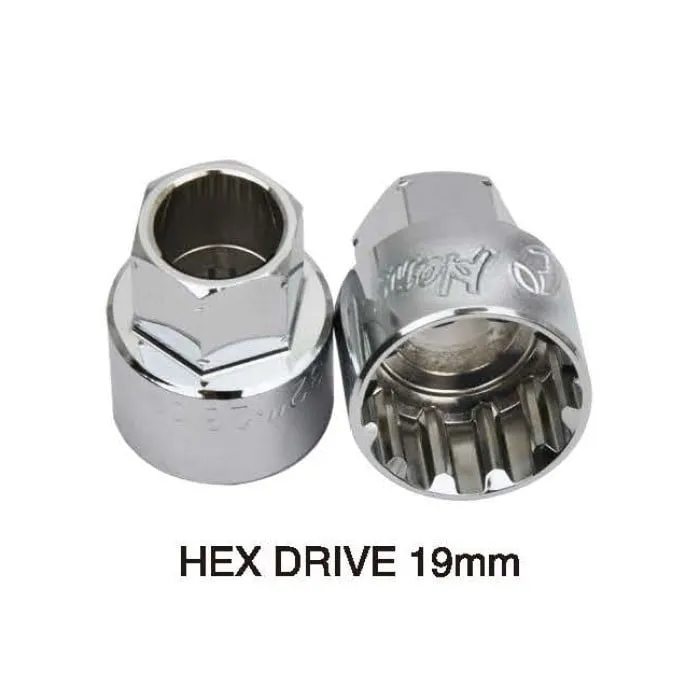

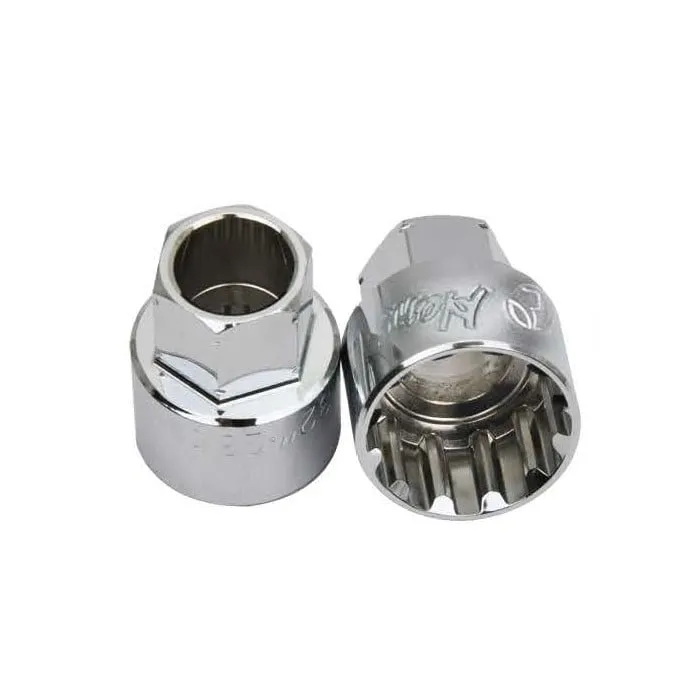

Spline Go-Thru Socket H3P00 (⅜” Drive)
Spline Go-Thru Socket ⅜” Drive – Universal Military Standard Socket H3P00
- Spline Go-Thru Socket ⅜” Drive – Universal Military Standard Socket (H3P00)
- Spline Durchstecknuss ⅜” Antrieb – Universelle Militärnorm-Stecknuss (H3P00)
- Douille Spline traversante ⅜” – Douille universelle norme militaire (H3P00)
- Vaso striado pasante ⅜” – Llave de norma militar universal (H3P00)
- Bussola scanalata passante ⅜” – Bussola universale standard militare (H3P00)
- Soquete estriado passante ⅜” – Soquete universal padrão militar (H3P00)
- 花键通孔套筒 ⅜” – 通用军规套筒 (H3P00)
- スプライン貫通ソケット ⅜” – ユニバーサル軍規格ソケット (H3P00)
- 스플라인 관통 소켓 ⅜” – 범용 군사 규격 소켓 (H3P00)
- Сквозная шлицевая головка ⅜” – Универсальная военного стандарта (H3P00)
- مقبس سبلاين نافذ ⅜” – مقبس قياسي عسكري عالمي (H3P00)
- Spline Geçişli Lokma ⅜” – Evrensel Askeri Standart Lokma (H3P00)
- ® An-Lock drive (Superb Torque)
Feature
Precision Engineering for Maximum Versatility
The Hans® Spline Go-Thru Socket is engineered in accordance with MS-33787 and MIL-W-8982 military standards. Originally developed for vehicle, equipment, and military maintenance, it is now widely used in professional and industrial applications where precision and strength are critical.
Key Features
- Universal Fit – Works with multiple nut profiles:
✔ 6-Point (Hex)
✔ 12-Point (Double Hex)
✔ Square
✔ Spline
✔ XZN (Triple Square)

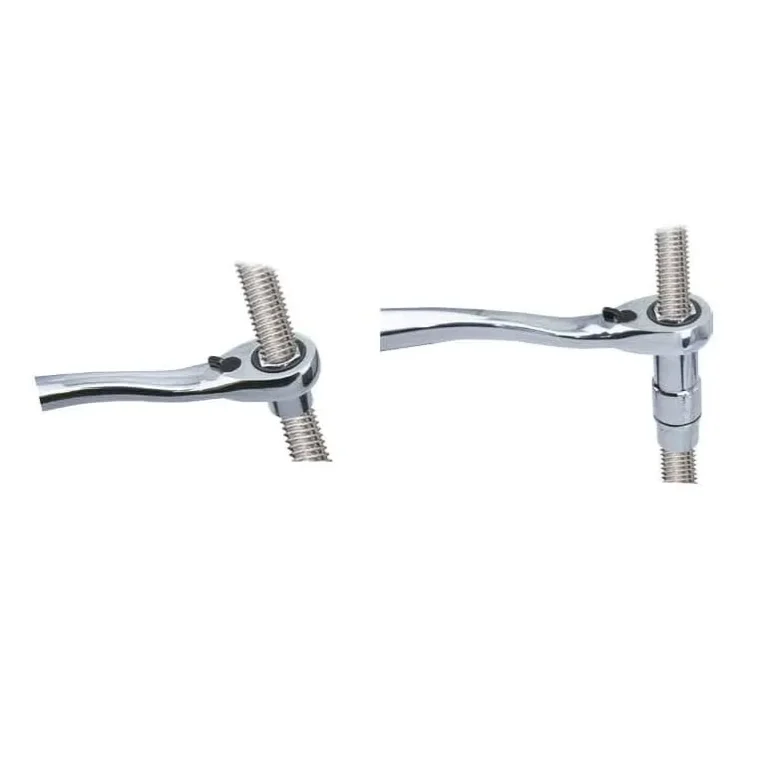

✔ E-Star (External Torx) - Go-Thru Design – Allows bolts and threaded rods to pass through, increasing efficiency in deep fastener applications.
- Heavy-Duty Construction – Manufactured from premium chrome vanadium steel for durability and torque resistance.
- Corrosion Resistant – Mirror-polished, chrome-plated finish ensures long-lasting protection.
- Professional-Grade – Suitable for automotive, industrial, aerospace, and defense maintenance.
Technical Details
- Drive Size: ⅜” (H3P00)
- Standards: MS-33787 / MIL-W-8982 compliant
- Finish: Chrome polished
Why Choose Hans® Go-Thru Sockets?
✔ Built to military-grade standards
✔ Handles a variety of fasteners with one socket
✔ Saves time and reduces tool changes
✔ Trusted worldwide in professional workshops & industrial maintenance
⅜" Drive Spline Go-Thru Socket

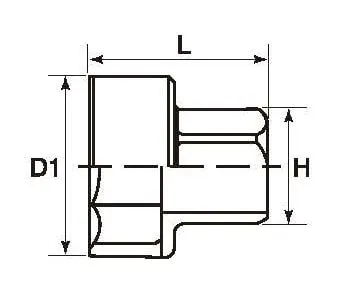

| H3P00 (Metric) | H3P00 (SAE) | D1 mm | H mm | L mm |  g |  pcs |
|---|---|---|---|---|---|---|
| 8 | ⁵ᐟ₁₆ | 13.7 | 19 | 30 | 44 | 10 |
| 10 | ⅜ | 16 | 19 | 30 | 40 | 10 |
| 11 | ⁷ᐟ₁₆ | 16.6 | 19 | 30 | 38 | 10 |
| 12 | ¹⁵ᐟ₃₂ | 17.6 | 19 | 30 | 38 | 10 |
| 13 | ½ | 18.6 | 19 | 30 | 36 | 10 |
| 14 | ⁹ᐟ₁₆ | 20 | 19 | 30 | 34 | 10 |
| 15 | ¹⁹ᐟ₃₂ | 21 | 19 | 30 | 32 | 10 |
| 16 | ⅝ | 23.7 | 19 | 30 | 38 | 10 |
| 17 | ¹¹ᐟ₁₆ | 23.7 | 19 | 30 | 30 | 10 |
| 18 | ²³ᐟ₃₂ | 25.7 | 19 | 30 | 36 | 10 |
| 19 | ¾ | 25.7 | 19 | 30 | 32 | 10 |
Profile of SURFACE DRIVE SOCKET
The SPLINE DRIVE SOCKET is designed by standard of MS-33787 and MIL-W-8982.
In the beginning, SPLINE SHAFT is designed in professional parts of vehicle, equipment and military.
And recently yars widely used in safety nut and multi-shape nuts such as 6-point, 12-point, square, SPLINE, XZN and E-STAR…etc.
