Click-Type Torque Wrench with Heavy-Duty Green Handle-¼” 3⁄8″ ½” & ¾” Drive
Categories Torque Wrench/ Digital Torque Wrench, Torque Wrench
Tags 1⁄4"DR, 3⁄8""DR, ½"DR, ¾"DR, Clicker Torque Wrench, Torque Wrench
Torque Wrench- Click Type- Green Steel Handle¼” 3⁄8″ ½” & ¾” Drive
- Click-Type Torque Wrench – Green Steel Handle – ¼”, 3⁄8″, ½”, ¾” Drive
- Clé dynamométrique à déclenchement – Manche en acier vert – ¼”, 3⁄8″, ½”, ¾”
- Klick-Drehmomentschlüssel – Grüner Stahlgriff – ¼”, 3⁄8″, ½”, ¾” Antrieb
- Llave dinamométrica tipo clic – Mango de acero verde – ¼”, 3⁄8″, ½”, ¾”
- Chave de torque tipo clique – Cabo de aço verde – ¼”, 3⁄8″, ½”, ¾”
- Chiave dinamometrica a scatto – Manico in acciaio verde – ¼”, 3⁄8″, ½”, ¾”
- Klikowy klucz dynamometryczny – Zielony uchwyt stalowy – ¼”, 3⁄8″, ½”, ¾”
- Kattanós nyomatékkulcs – Zöld acél nyéllel – ¼”, 3⁄8″, ½”, ¾”
- Klik-type momentsleutel – Groene stalen handgreep – ¼”, 3⁄8″, ½”, ¾”
- Щелчковый динамометрический ключ – Зелёная стальная ручка – ¼”, 3⁄8″, ½”, ¾”
- مفتاح عزم نوع طقة – مقبض فولاذي أخضر – ¼” 3⁄8″ ½” ¾”
- 點擊式扭力扳手 – 綠色鋼製握把 – ¼”, 3⁄8″, ½”, ¾”
- 点击式扭力扳手 – 绿色钢制手柄 – ¼”, 3⁄8″, ½”, ¾”
- クリック式トルクレンチ – グリーンスチールハンドル – ¼”, 3⁄8″, ½”, ¾”
- 클릭형 토크 렌치 – 녹색 강철 손잡이 – ¼”, 3⁄8″, ½”, ¾”
- ประแจแรงบิดแบบคลิก – ด้ามจับเหล็กสีเขียว – ¼”, 3⁄8″, ½”, ¾”
- Tıklamalı Tork Anahtarı – Yeşil Çelik Saplı – ¼”, 3⁄8″, ½”, ¾”
- DIN EN ISO 6789
- DIN 3120 – ISO 1174

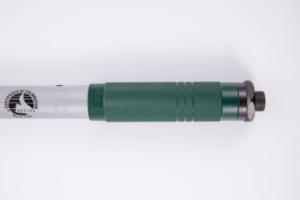

- Handle Introduction-Plier, Torque Wrench and Wrench


Feature
- Clicker type torque wrench is the most commonly used one in the oil and gas industry today. A clicker wrench is an affordable and extremely accurate tool for tightening bolts or nuts. It is not a power tool but a manual method to achieve proper torque, which makes it ideal for assembling equipment in the oil and gas industry. A clicker-type torque wrench is the most commonly used one in the oil and gas industry today.
- Torque wrench is an essential tool for ensuring that bolts are tightened to the correct specification. They are made from chrome vanadium steel for strength and durability, and have a ratchet head that allows them to be used for clockwise or anti-clockwise torque. The handle is knurled for a good grip, and when the required torque setting is reached, the wrench produces an audible click and a slight release of tension.
- The model applied on ¼” ⅜” ½” ¾” Drive, apply for N.m and ft lbs (Newton-metre, foot-pound) Item No. 2170Nm, 3170Nm, 3171Nm 4175Nm, 4170Nm, 4171Nm, 6170Nm/ 2170NI, 3170NI, 3171NF, 4175NF, 4170NF, 4171NF, 6170NF


DRIVE | ITEM NO. | CAPACITY N · m | ITEM NO. | CAPACITY FT-LB (INCH-LB) | L mm / inch | ![]() g |
---|---|---|---|---|---|---|

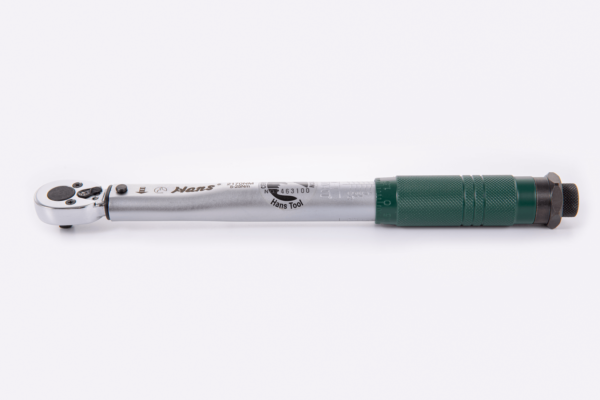

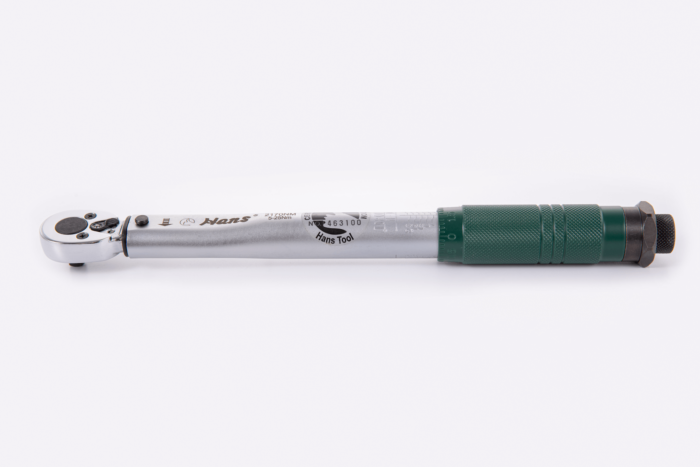

¼" | 2170Nm | 5-25 | 2170NI | 35-200 INCH · LB | 280 / 11" | 580![]() |

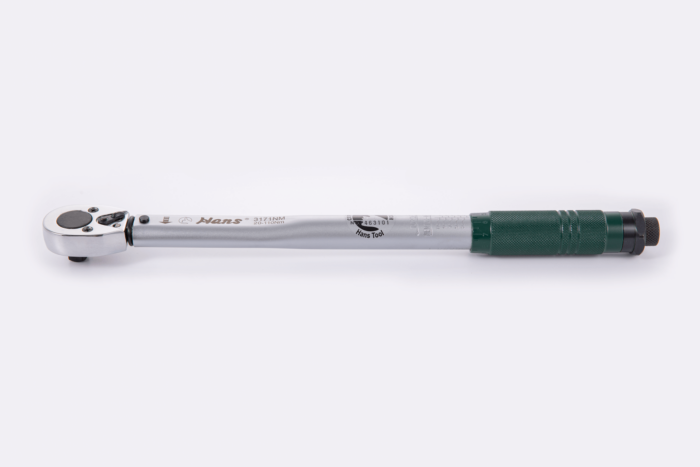

⅜" | 3170Nm | 5-25 | 3170NI | 35-200 INCH · LB | 275 / 11" | 580![]() |
⅜" | 3171Nm | 20-110 | 3171NF | 15-80 FT · LB | 360 / 14-⅜" | 820![]() |
½" | 4175Nm | 20-110 | 4175NF | 15-80 FT · LB | 360 / 14-⅜" | 830![]() |

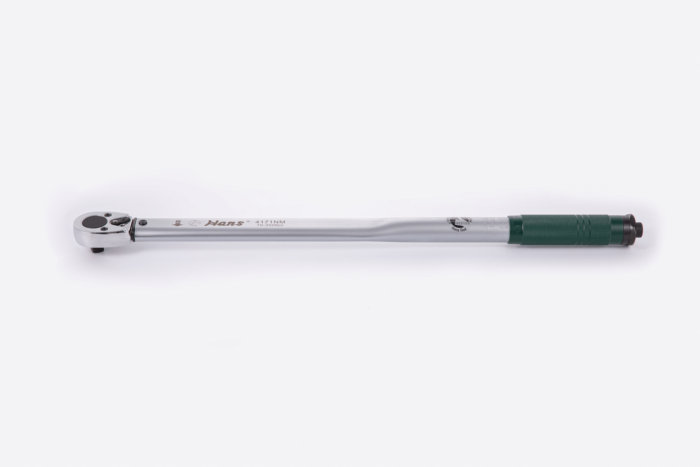

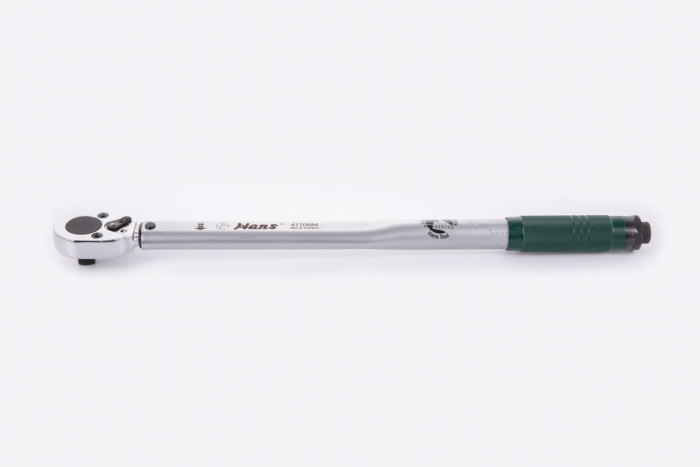

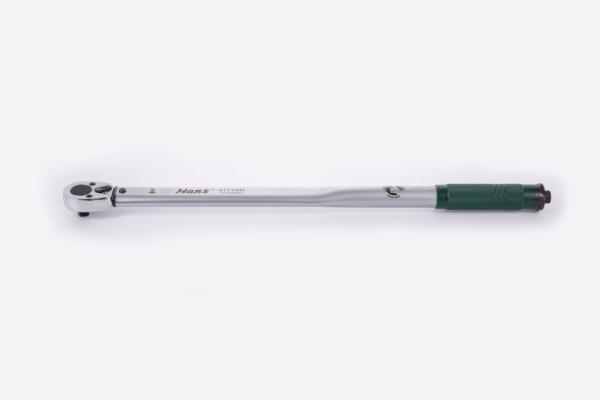

½" | 4170Nm | 40-210 | 4170NF | 30-150 FT · LB | 465 / 18" | 1340![]() |
½" | 4171Nm | 70-350 | 4171NF | 50-250 FT · LB | 630 / 24-¹³ᐟ₁₆" | 2400![]() |
¾" | 6170Nm | 65-450 | 6170NF | 50-300 FT · LB | 850 / 33-½" | 3840![]() |

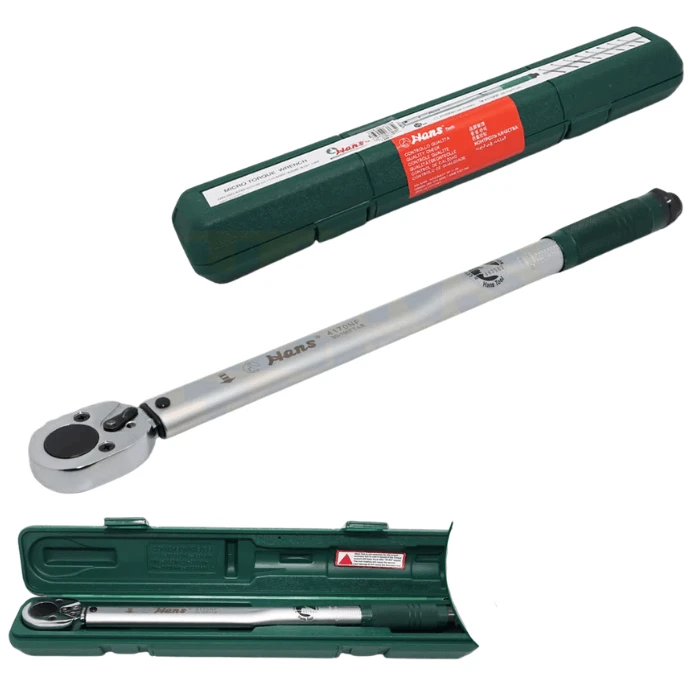

BLOW CASE FOR EACH |
