Universal Joint ¼” 3⁄8″ ½” ¾ “& 1” Drive
Universal Joint-2200,3200,4200,6200,8200
- Universal Joint
- Cardan universel
- Przegub uniwersalny
- Universalgelenk
- Junta universal
- وصلة مفصلية عالمية
- 萬向接頭
- Junta universal
- Univerzális csukló
- Articulație universală
- Giunto universale
- Universeel gewricht
- Универсальный шарнир
- Üniversal mafsal
- DIN 3122- ISO3315
- Available from ¼” 3⁄8″ ½” ¾ “& 1” Drive
- Socket Adaptor vs. Universal Joint: Know the Difference Before You Buy

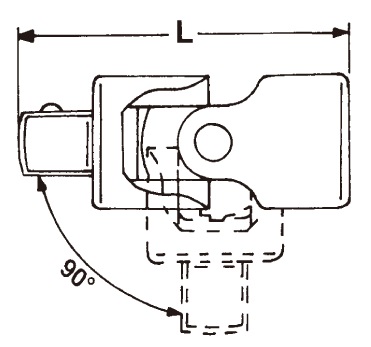

A universal joint is a connecting device that can be used to join two pieces of metal. It can be found in shafts that transmit rotary motion, and works by being oriented at 90 degrees to each other. The universal joint does not allow for constant velocity because it is only a simple hinge.
| ITEM NO. | DRIVE | L mm | L inch |  g |  pcs |
|---|---|---|---|---|---|
| 2200 | 1/4" | 40 | 1-9/16" | 20 | 10 |
| 3200 | 3/8" | 50 | 2" | 60 | 10 |
| 4200 | 1/2" | 70 | 2-3/4" | 140 | 10 |
| 6200 | 3/4" | 110 | 4-5/16" | 590 | 2 |
| 8200 | 1" | 143 | 5-3/4" | 1150 | 1 |
