11 PCs Spline Go-Thru Socket Set ½” Drive – H4P611 | Universal Socket Kit
11 PCs Spline Go-Thru Socket Set ½” Drive – H4P611 | Universal Socket Kit
- 11 PCs Spline Go-Thru Socket Set ½” Drive – H4P611
- 11-tlg. Spline Durchsteck-Steckschlüsselsatz ½” Antrieb – H4P611
- Coffret Douilles Traversantes Spline 11 Pièces ½” – H4P611
- Juego de Vasos Pasantes Spline 11 Piezas ½” – H4P611
- Set Chiavi a Bussola Passanti Spline 11 Pezzi ½” – H4P611
- 11点スプライン貫通ソケットセット ½” ドライブ – H4P611
- 11件套 花键贯通套筒组 ½” 驱动 – H4P611
- 11종 스플라인 관통 소켓 세트 ½” 드라이브 – H4P611
- Набор сквозных сплайн-головок 11 шт. ½” – H4P611
- ® An-Lock drive (Superb Torque)
Feature
H4P611 – 11 PCs Spline Go-Thru Socket Set (½” Drive) is engineered for versatility and strength. Designed under MS-33787 and MIL-W-8982 standards, this set is ideal for automotive repair, industrial assembly, and military maintenance.

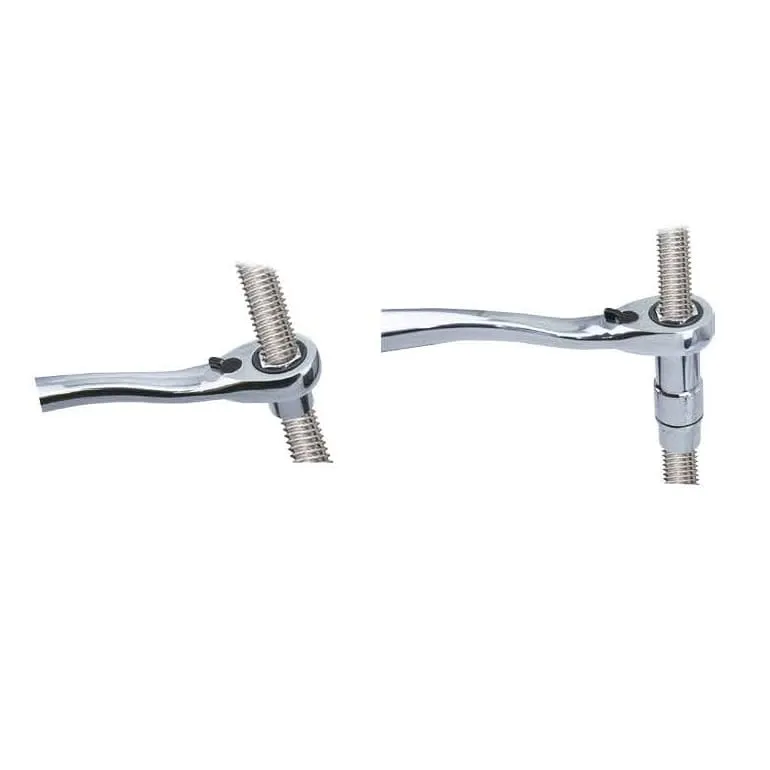

The Go-Thru design allows bolts to pass completely through the socket, making it perfect for long-threaded applications and universal nut profiles — 6-point, 12-point, square, spline, XZN, and E-star.

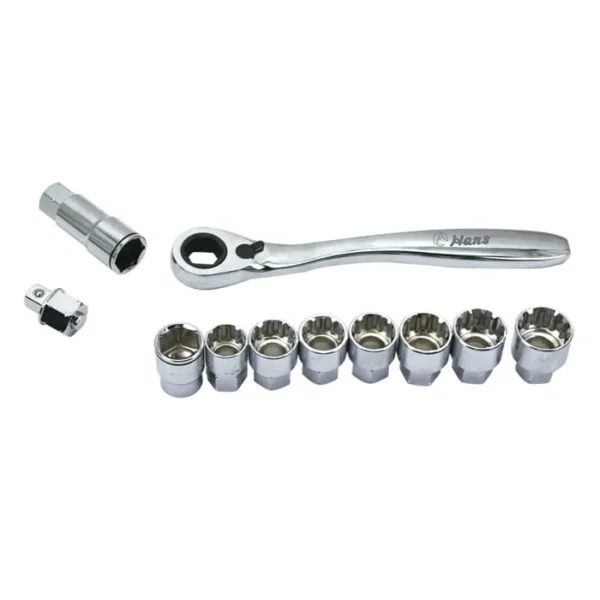

Set Contents
- Sockets: H4P00 series (19mm ~ 25mm sizes)

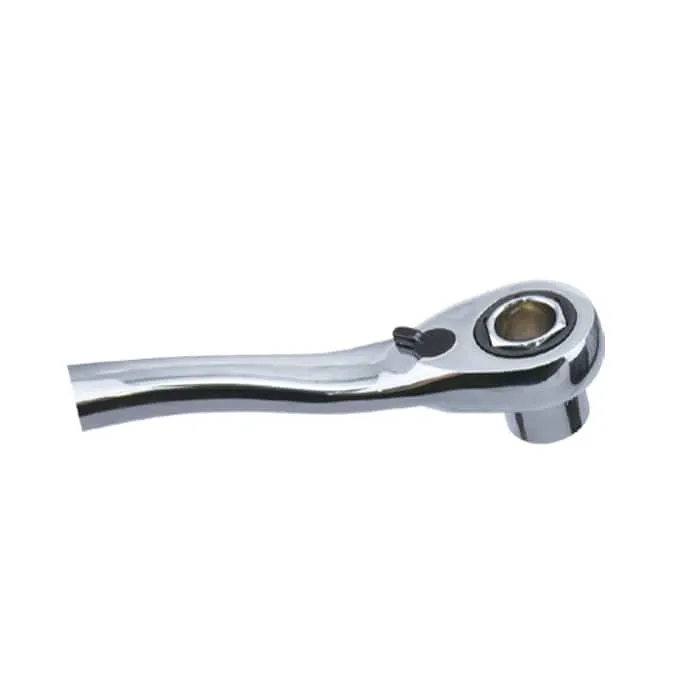

- Ratchet Handle: 22mm Hex (female) × 260mm length
- Extension Bar: 22mm Hex (male-female) × 75mm length
- Adaptor: ½” (male) × 22mm Hex (female)
- Socket Adaptor: ½” square (male) × 22mm Hex (female)
Key Features
- ✅ Go-Thru System – Works with long bolts & threaded rods
- ✅ Universal Fit – Engages multiple nut shapes (6PT, 12PT, spline, XZN, E-star, square)

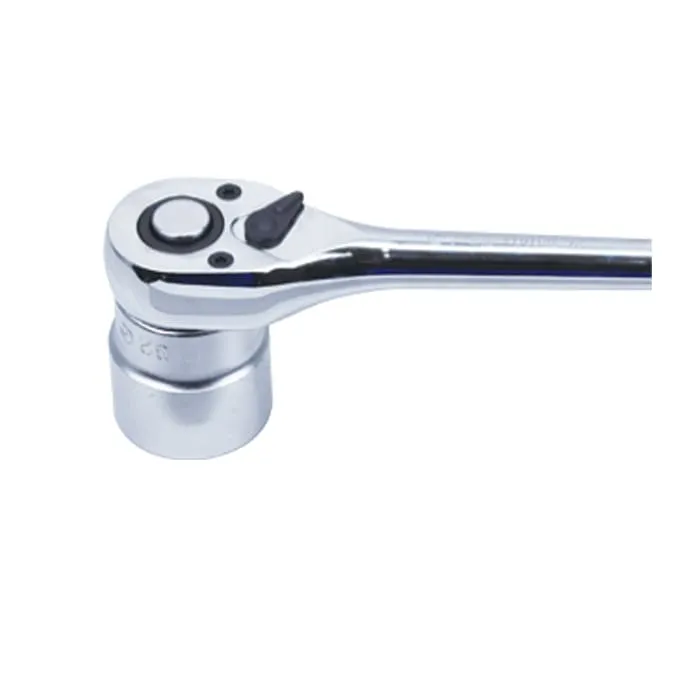

- ✅ Heavy-Duty Ratchet Handle – Slim profile with 22mm hex gear for torque efficiency
- ✅ Durable Chrome Finish – Corrosion-resistant and professional-grade
- ✅ Industrial Standard Compliance – MS-33787 & MIL-W-8982
Applications
- Automotive repair & maintenance
- Heavy-duty equipment servicing
- Industrial assembly lines
- Aerospace & defense (military-grade usage)
11 PCs Spline Go-Thru Socket Set ½" Drive – H4P611 | Universal Socket Kit
| H4P00 (Metric) | H4P00 (SAE) | D1 mm | H mm | L mm |  g |  pcs |
|---|---|---|---|---|---|---|
| 19 | ¾ | 26.6 | 22 | 38 | 54 | 10 |
| 20 | ²⁵ᐟ₃₂ | 29.8 | 22 | 38 | 72 | 10 |
| 21 | ¹³ᐟ₁₆ | 29.8 | 22 | 38 | 68 | 10 |
| 22 | ⅞ | 29.8 | 22 | 38 | 64 | 10 |
| 23 | ²⁹ᐟ₃₂ | 31.8 | 22 | 38 | 76 | 10 |
| 24 | ¹⁵ᐟ₆₄ | 31.8 | 22 | 38 | 72 | 10 |
| 25 | 1" | 33.8 | 22 | 38 | 74 | 10 |
Profile of SURFACE DRIVE SOCKET
The SPLINE DRIVE SOCKET is designed by standard of MS-33787 and MIL-W-8982.
In the beginning, SPLINE SHAFT is designed in professional parts of vehicle, equipment and military.
And recently yars widely used in safety nut and multi-shape nuts such as 6-point, 12-point, square, SPLINE, XZN and E-STAR…etc.
