1164L / 1164LA Extra-Long Combination Wrench | Mirror Finish

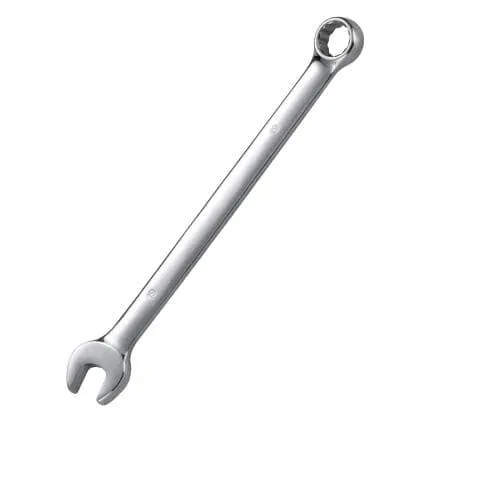

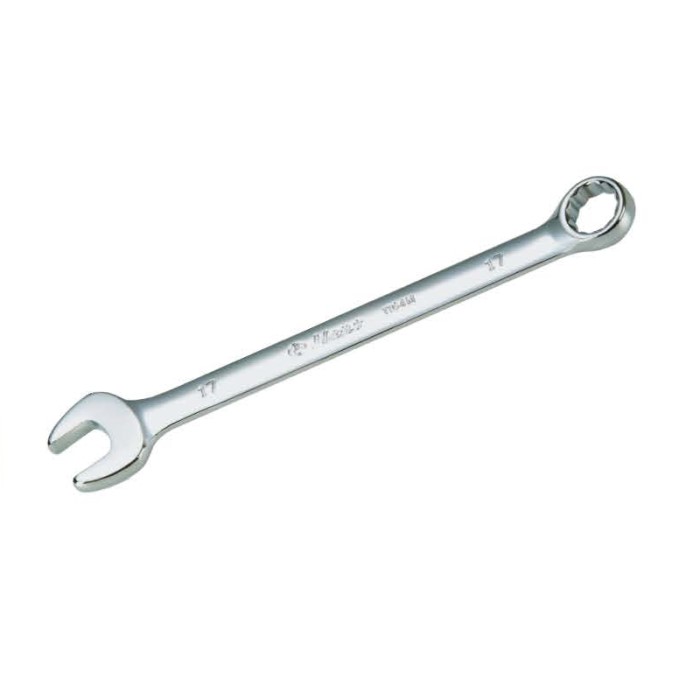

1164L / 1164LA Series: Extra-Long Mirror Polished Combination Wrench
- Clé mixte allongée
- Rozszerzony klucz płasko-oczkowy
- Kombischlüssel verlängert
- Llave combinada extendida
- تمديد وجع الجمع
- ประแจรวมแบบขยาย
- 亮面雙用扳手 加長型
- Wrench all we can support
| 1164L (mm) | 1164LA (inch) | W (mm) | W1 (mm) | T (mm) | T1 (mm) | L (mm) |  g |  pcs |
|---|---|---|---|---|---|---|---|---|
| 10 | ⅜ | 22 | 15.1 | 5.4 | 6.8 | 167 | 40 | 12 |
| 11 | ⁷ᐟ₁₆ | 25.3 | 16.7 | 6 | 7.4 | 186 | 60 | 12 |
| 12 | 27.6 | 18.3 | 6.6 | 8 | 196 | 80 | 12 | |
| 13 | ½ | 28.6 | 18.8 | 7 | 8.6 | 205 | 100 | 12 |
| 14 | ⁹ᐟ₁₆ | 31.5 | 21.5 | 7.4 | 9.4 | 223 | 120 | 12 |
| 15 | 33 | 22.7 | 7.7 | 10 | 233 | 140 | 12 | |
| 16 | ⅝ | 33.7 | 23.8 | 8.1 | 10.6 | 243 | 160 | 12 |
| 17 | ¹¹ᐟ₁₆ | 36.6 | 25.5 | 8.4 | 11.4 | 262 | 200 | 12 |
| 18 | 38.4 | 27 | 8.7 | 12.2 | 272 | 220 | 6 | |
| 19 | ¾ | 40.2 | 28.5 | 9 | 13 | 281 | 240 | 6 |
| 20 | 43.2 | 30.2 | 9.2 | 13.8 | 301 | 300 | 6 | |
| 21 | ¹³ᐟ₁₆ | 43.2 | 30.2 | 9.4 | 13.8 | 301 | 300 | 6 |
| 22 | ⅞ | 46.5 | 32.7 | 9.8 | 14.6 | 319 | 320 | 6 |
| 23 | 48.1 | 33.8 | 10.2 | 15.5 | 329 | 400 | 6 | |
| 24 | ¹⁵ᐟ₁₆ | 49.7 | 34.8 | 10.5 | 16 | 339 | 470 | 6 |
| 25 | (1") | 52.9 | 37 | 11.3 | 17.2 | 373 | 620 | 6 |
| 26 | 52.9 | 37 | 11.3 | 17.2 | 373 | 620 | 6 | |
| 27 | (1-¹ᐟ₁₆) | 56.1 | 39.3 | 12.2 | 18.6 | 388 | 700 | 6 |
| 28 | 59.2 | 41.4 | 13 | 19.8 | 404 | 820 | 6 | |
| 29 | (1-⅛) | 59.2 | 41.4 | 13 | 19.8 | 404 | 820 | 6 |
| 30 | (1-³ᐟ₁₆) | 59.2 | 41.4 | 13 | 19.8 | 404 | 820 | 6 |
| 32 | (1-¼) | 65.6 | 46 | 14.4 | 22 | 431 | 1100 | 6 |
Feature
Extra-Long Reach: The extended length provides the mechanical advantage needed to break loose seized or high-torque fasteners that standard-length wrenches cannot handle.
Full Mirror Polished Finish: Every surface—from the open end to the box end—is polished to a mirror shine. This non-porous surface prevents grease and chemical buildup and wipes clean instantly.
12-Point (Bi-Hex) Box End: The precision-broached 12-point end allows for engagement on fasteners at 30-degree intervals, providing superior access in restricted or cramped spaces.
15-Degree Offset: The box end is offset at a 15-degree angle, providing essential knuckle clearance when working against flat surfaces.
Forged Cr-V Steel: Engineered to exceed international DIN and ISO torque standards, ensuring the wrench will not “spring” or distort under extreme manual pressure.
