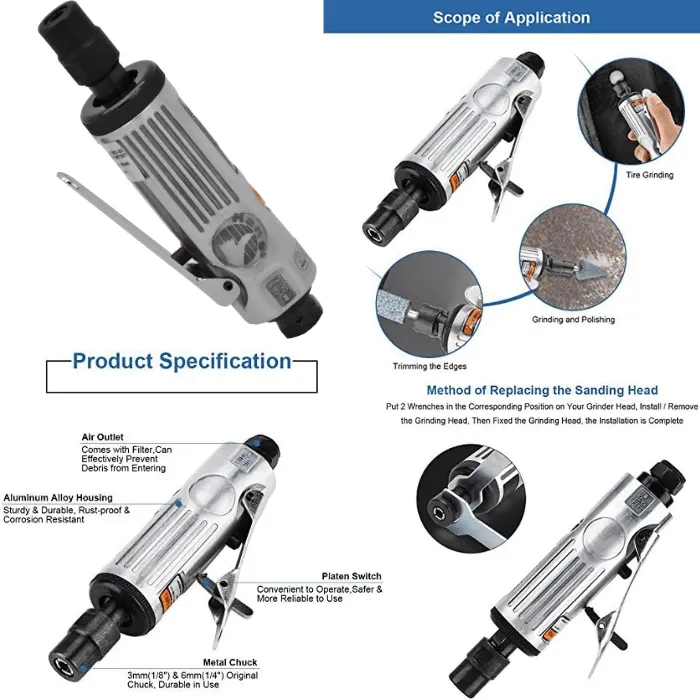

82901-03-Air Die Grinder
82901-03-Air Die Grinder
- Straight Pattern- Air Die Grinder
- Meuleuse coudée, droite
- Szlifierka kątowa i prosta
- Die Grinder-abgewinkelt und gerade
- Amoladora de angular y recta
- جلاخة قوالب بزاوية ومستقيمة
- เครื่องบด – มุมเอียงและมุมขวา
- 氣動帶柄內徑研磨機
- 82901-03/ 82901-036
- Impact Wrench- Pneumatic Power Instruction
Information
Die grinders and rotary tools are handheld power tools used for grinding, sanding, honing, polishing, or machining material (typically metal, but also plastic or wood).
What is the difference between an end grinder and a die grinder?
In a nutshell, a die grinder is typically smaller and has several different attachments that can help you cut, sand, polish, and various other things. The angle grinder is a larger and often heavier tool that uses a rotating wheel to grind, sand, or cut larger materials.
ITEM NO. | COLLECT SIZE | MOTOR H.P. | EXHAUST | FREE SPEED R.P.M. | AVG.DLR CONSUMPTION CFM |
---|---|---|---|---|---|
82096 (105°) | 6mm | 0.5 | REAR | 15000 | 7 |
82096-2 (105°) | 1/4" | 0.5 | REAR | 15000 | 7 |
82907 (90°) | 1/4" | 0.3 | REAR | 19000 | 10 |
82907-6 (90°) | 6mm | 0.3 | REAR | 19000 | 10 |
82901-03 | 1/4" | 0.3 | REAR | 25000 | 10 |
82901-036 | 6mm | 0.3 | REAR | 25000 | 10 |
82901-03N | 1/4" | 0.3 | REAR | 25000 | 10 |
82901-036N | 6mm | 0.3 | REAR | 25000 | 10 |
82901-05 | 1/4" | 0.5 | REAR | 22000 | 12.5 |
82901-056 | 6mm | 0.5 | REAR | 22000 | 12.5 |
82901-05N | 1/4" | 0.5 | REAR | 22000 | 12.5 |
82901-056N | 6mm | 0.5 | REAR | 22000 | 12.5 |
ITEM NO. | AIR PRESSURE BAR (PSI) | AIR INLET INCH | AIR HOSE ID | OVERALL LENGTH inch/mm | KGS | pcs |
---|---|---|---|---|---|---|
82096 (105°) | 90 PSI 6.2 BAR | 1/4 | 1/4 | 7.2"/ 180 | 0.55 | 20 |
82096-2 (105°) | 90 PSI 6.2 BAR | 1/4 | 1/4 | 7.2"/ 180 | 0.55 | 20 |
82907 (90°) | 90 PSI 6.2 BAR | 1/4 | 1/4 | 6.4"/ 160 | 0.75 | 20 |
82907-6 (90°) | 90 PSI 6.2 BAR | 1/4 | 1/4 | 6.4"/ 160 | 0.75 | 20 |
82901-03 | 90 PSI 6.2 BAR | 1/4 | 1/4 | 6.2"/ 155 | 0.6 | 20 |
82901-036 | 90 PSI 6.2 BAR | 1/4 | 1/4 | 6.2"/ 155 | 0.6 | 20 |
82901-03N | 90 PSI 6.2 BAR | 1/4 | 1/4 | 5.6"/ 140 | 0.4 | 20 |
82901-036N | 90 PSI 6.2 BAR | 1/4 | 1/4 | 5.6"/ 140 | 0.4 | 20 |
82901-05 | 90 PSI 6.2 BAR | 1/4 | 1/4 | 7"/ 175 | 0.7 | 20 |
82901-056 | 90 PSI 6.2 BAR | 1/4 | 1/4 | 7"/ 175 | 0.7 | 20 |
82901-05N | 90 PSI 6.2 BAR | 1/4 | 1/4 | 7"/ 175 | 0.7 | 20 |
82901-056N | 90 PSI 6.2 BAR | 1/4 | 1/4 | 7"/ 175 | 0.7 | 20 |
