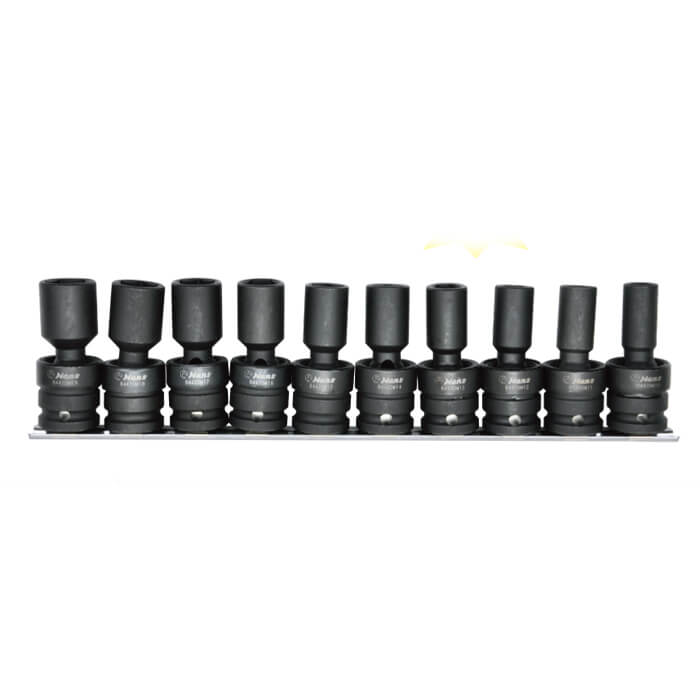

846020-10MC ½” Universal Joint Impact Socket Set 10 PCs
846020-10MC: 1/2″ Drive Universal Joint Impact Socket Set (10 Pcs / 10–19mm)
- 846020-10MC 1/2″ Drive Universal Joint Impact Socket Set 10 Pcs (10–19mm / Metal Case)
- Coffret de 10 douilles articulées impact 1/2″ 846020-10MC (10 à 19 mm / Boîte métallique)
- 846020-10MC 1/2″ Kraft-Kardangelenk-Steckschlüsselsatz 10-teilig (10–19 mm / Metallkasten)
- Juego de 10 vasos de impacto articulados de 1/2″ 846020-10MC (10 a 19 mm / Caja metálica)
- Zestaw 10 nasadek udarowych przegubowych 1/2″ 846020-10MC (10–19 mm / Skrzynka metalowa)
- Jogo de 10 soquetes de impacto articulados de 1/2″ 846020-10MC (10 a 19 mm / Estojo metálico)
- Набор ударных карданных головок 1/2″ 10 предметов 846020-10MC (10–19 мм / Металлический кейс)
- 846020-10MC 1/2″ 差込角 ユニバーサルジョイント インパクトソケットセット 10点セット (10～19mm / メタルケース付き / 台湾製)
- 846020-10MC 1/2″ 드라이브 유니버셜 조인트 임팩트 소켓 10피스 세트 (10~19mm / 철제 케이스 / 대만산)
- Bộ đầu tuýp lắc léo tác động 10 chi tiết đầu 1/2″ 846020-10MC (10–19mm / Hộp kim loại)
- ชุดลูกบล็อกลมข้อต่ออ่อน 10 ชิ้น ขนาด 1/2 นิ้ว รุ่น 846020-10MC (10–19 มม. / กล่องเหล็ก ผลิตในไต้หวัน)
- 846020-10MC 1/2″ Mafsallı Havalı Lokma Takımı 10 Parça (10-19 mm / Metal Kutulu)
- 10dílná sada úderových kloubových hlavic 1/2″ 846020-10MC (10–19 mm / Kovový kufr)
- طقم مقابس صدمات مفصلية محرك ١/٢ بوصة ١٠ قطع 846020-10MC (١٠-١٩ مم / صندوق معدني)
- 846020-10MC 1/2″ 10件式 氣動萬向搖頭套筒組 (10-19mm / 84420球型關節短型設計 / 附專用鐵盒 / 100%台灣製造)
846020-10MC 1/2″ Drive Universal Joint Impact Socket Set 10 Pcs is engineered to resolve high-torque fastener access issues in confined mechanical spaces. In automotive suspension assemblies, transmission bell housings, steering racks, and exhaust manifolds, fasteners are rarely aligned in a straight line with power tool anvils. Stacking a separate universal joint adapter under a standard impact socket introduces excessive head height, severe rotational wobble, and torsional energy loss.
| 10PCS | 846020-10MC |
|---|---|
| 84420M | 10, 11, 12, 13, 14, 15, 16, 17, 18, 19mm |
| BLISTER CARD | G.W: 10.6 |
 | 24 Sets/ 1.15' |
Feature
Why use an integrated universal joint socket instead of an adapter and socket?
An integrated swivel socket combines the joint and socket head into a single piece, reducing head height by over 30% and eliminating the wobble and power loss caused by stacking loose adapters.
Can these universal joint sockets be used with 1/2″ air impact guns?
Yes. Drop-forged from high-strength Chrome Molybdenum (Cr-Mo) steel and treated with manganese black phosphate, the 84420 sockets are engineered for high-vibration power tools and feature ISO 1174-2 compliant safety pin holes and retaining ring grooves.
What is the maximum operating angle for the swivel mechanism?
The universal joint provides smooth, continuous operation at angles up to $30^\circ$, allowing technicians to service fasteners obstructed by brackets, steering shafts, and chassis components.
Eliminating Stack-Up Height & Rotational Slop
- Compact Clearance: By integrating the socket broach directly into the swivel pivot, the 84420 eliminates the intermediate drive square and female housing. This cuts total tool height by up to 35%, allowing direct impact access inside narrow subframe and strut towers.
- Direct Kinetic Energy Transfer: Independent U-joint adapters absorb and dissipate kinetic energy through rotational whipping. The integrated design keeps rotational mass centered, transferring full pneumatic torque to the fastener.
