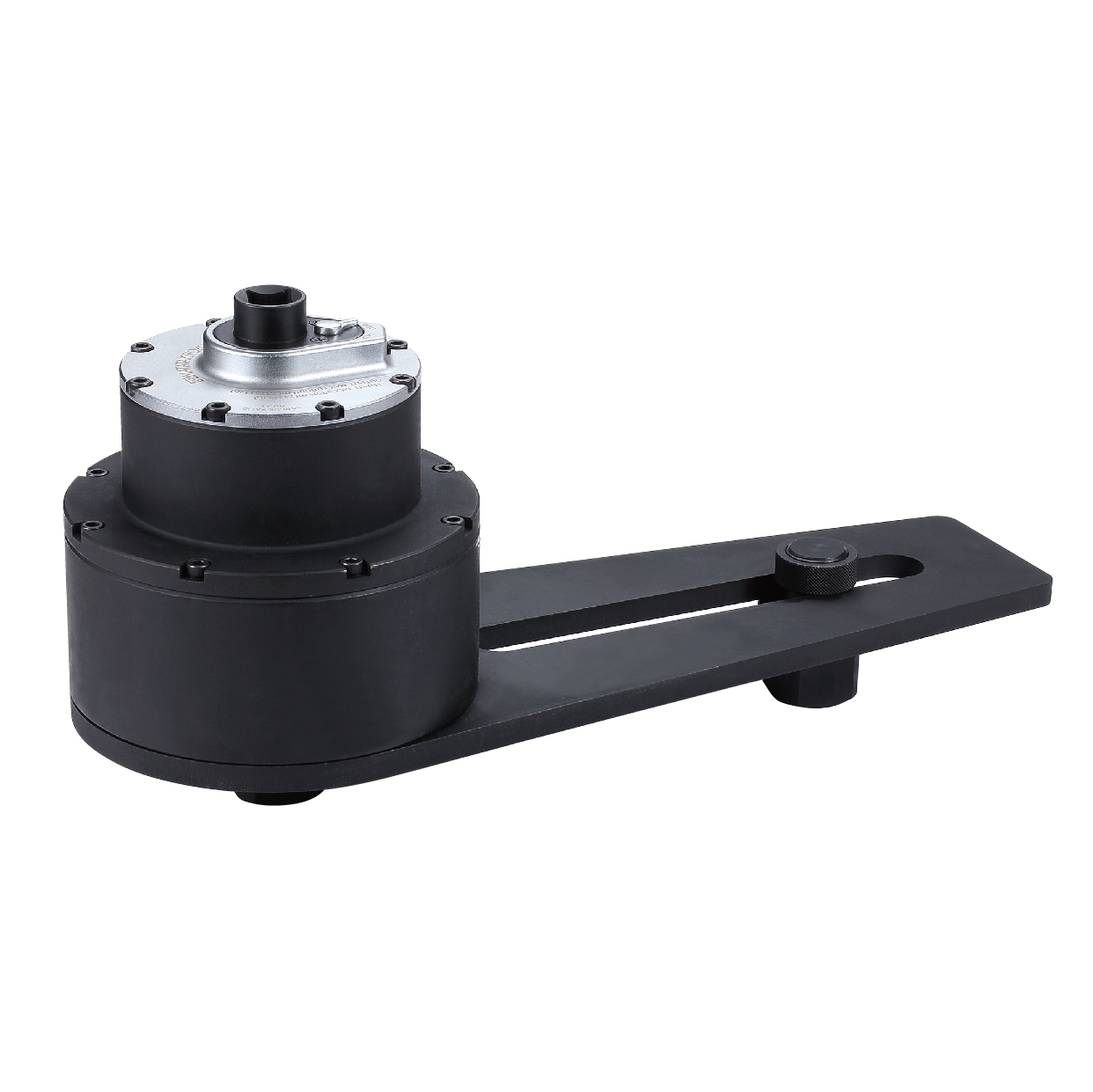

Torque Multiplier Tool Set-9291 (Maximum10,000N.m)
Torque Multiplier Tool Set-9291 (Maximum10,000N.m)
- Multiplicateur de dynamometrique
- Mnożnik momentu obrotowego
- Drehmomentmultiplikator
- Multiplicando dinamométrica
- مضاعف عزم الدوران
- ตัวคูณแรงบิด
- 倍力器
- Quality Priority Since 1973
Torque Multiplier
Make work easier by using leverage which multiplies the Torque.
There are three ways simple machines make work easier:
- by increasing the distance through which force is applied,
- by changing the direction of applied force,
- by multiplying force of speed of the energy applied.
| ITEM NO. | F (HORSE) | M (SQUARE) | GEAR RATIO | TORQUE RATIO |
|---|---|---|---|---|
| 9290-10 | 1/2" DR. | 1-1/2" | 1 : 10 | 1 : 10 |
| 9291-10 | 3/4" DR. | 1-1/2" | 1 : 30 |
| W mm | H mm | L mm | INPUT TORQUE N · m | OUTPUT TORQUE N · m |  g |
|---|---|---|---|---|---|
| 110 | 253.6 | 265 | MAX : 400 | MAX : 4000 | 8900  |
| 186 | 176 | 490 | MAX : 335 | MAX : 10000 | 30400 |
