8176NM/ 8175NF 1″ Drive 2500 Nm Heavy-Duty Torque Wrench

3-Piece Extendable Structural Design & Mechanical Advantage

The engineering architecture of this premium torque instrument handles extreme forces while prioritizing safety and ease of transport:

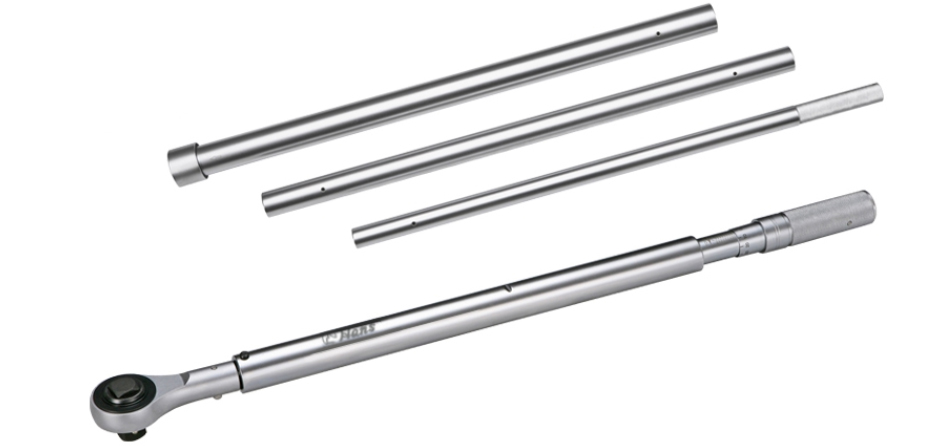

• Rigid 3-Piece Sectional Tube Assembly: Built around a modular system that connects three high-strength structural steel tubes into a massive overall tool length of 2,920 mm (approximately 130 inches). This extended handle configuration creates the physical leverage required for a single operator to reach 2500 Nm of torque without relying on dangerous, uncalibrated cheater pipes.
• Precision Push-Button Interlocking Connections: The extension sticks lock together using high-tolerance, dual-locking coupling joints. This precise metal-on-metal alignment ensures the long handle remains completely rigid under maximum load, eliminating flexing and guaranteeing accurate torque readings.
• High-Mass 1″ 凸 (Convex/Male) Ratchet Anvil: The heavy-duty ratchet head houses a massive 1″ 凸 (convex/male) drive anvil precision-machined from a hardened alloy. Equipped with a heavy-duty retention pin, it provides a wobble-free connection inside the 凹 (concave/female) square drive socket pocket of thick-walled industrial impact sockets.

Certified Accuracy Matrix & Industrial Click Calibration

• Dual-Directional CW/CCW Operational Tuning: Built with an advanced internal spring-and-block mechanism that accurately calibrates both clockwise (CW) and counter-clockwise (CCW) tightening operations. This makes it an ideal choice for complex left-hand thread structural assemblies.

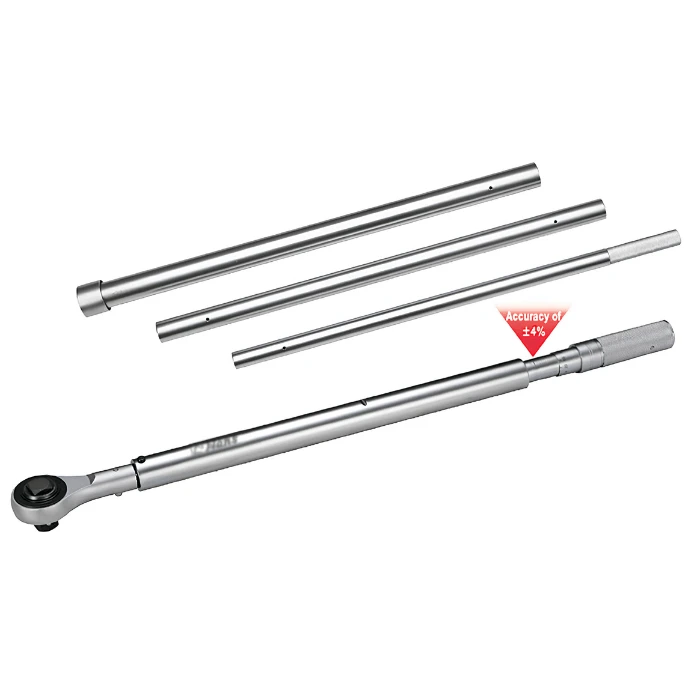

• Guaranteed Precision Calibration Tracking: Every premium wrench leaves the factory verified at an accuracy tolerance of less than 4%, comfortably exceeding ISO 6789 standards. A clear audible click and a physical break mechanical feedback instantly warn the technician when the target limit is achieved.

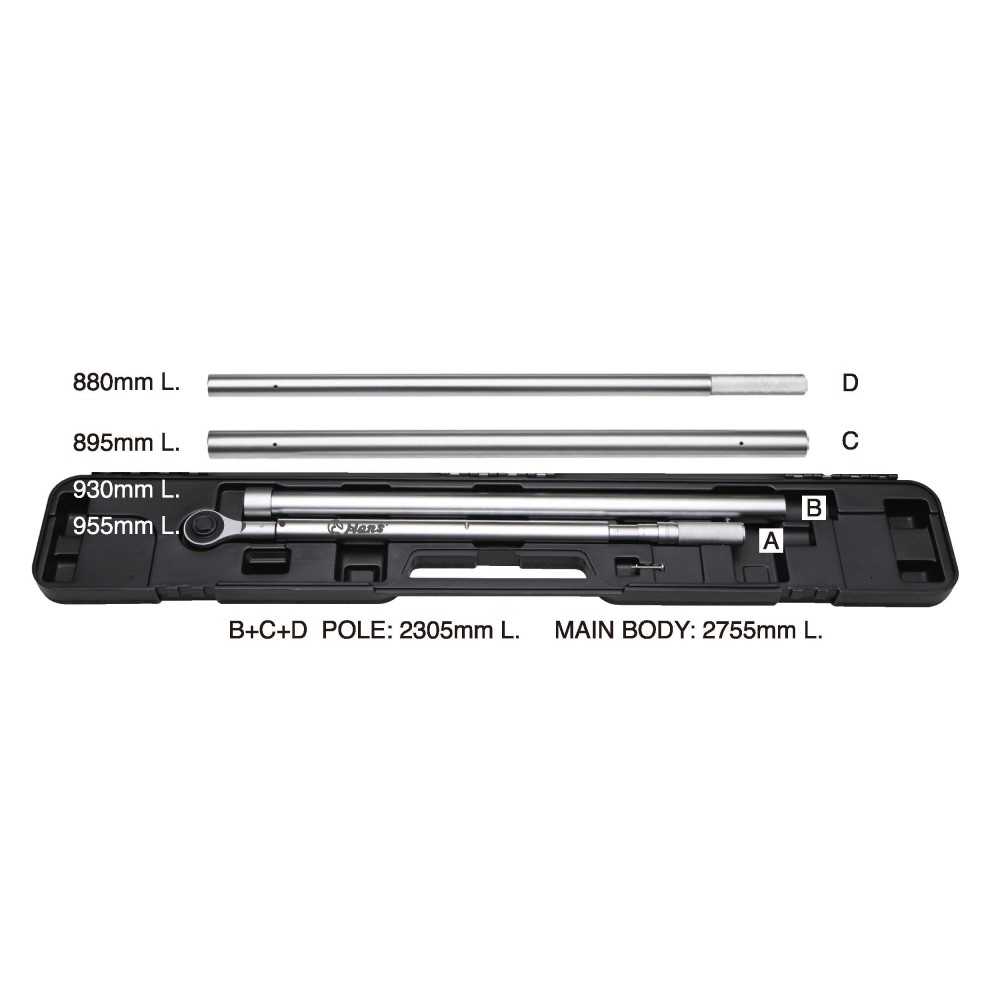

• Industrial Protective Storage Transport Housing: Given its massive assembled length, the breakdown architecture enables the entire kit to rest cleanly inside a rugged, impact-molded plastic blow case, protecting the precision internal calibration spring during transport.
