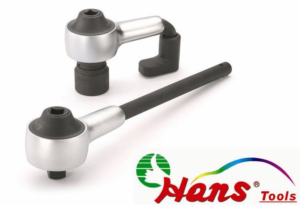

Torque Multiplier Tool (2 PCs) 6194, 8194 Series

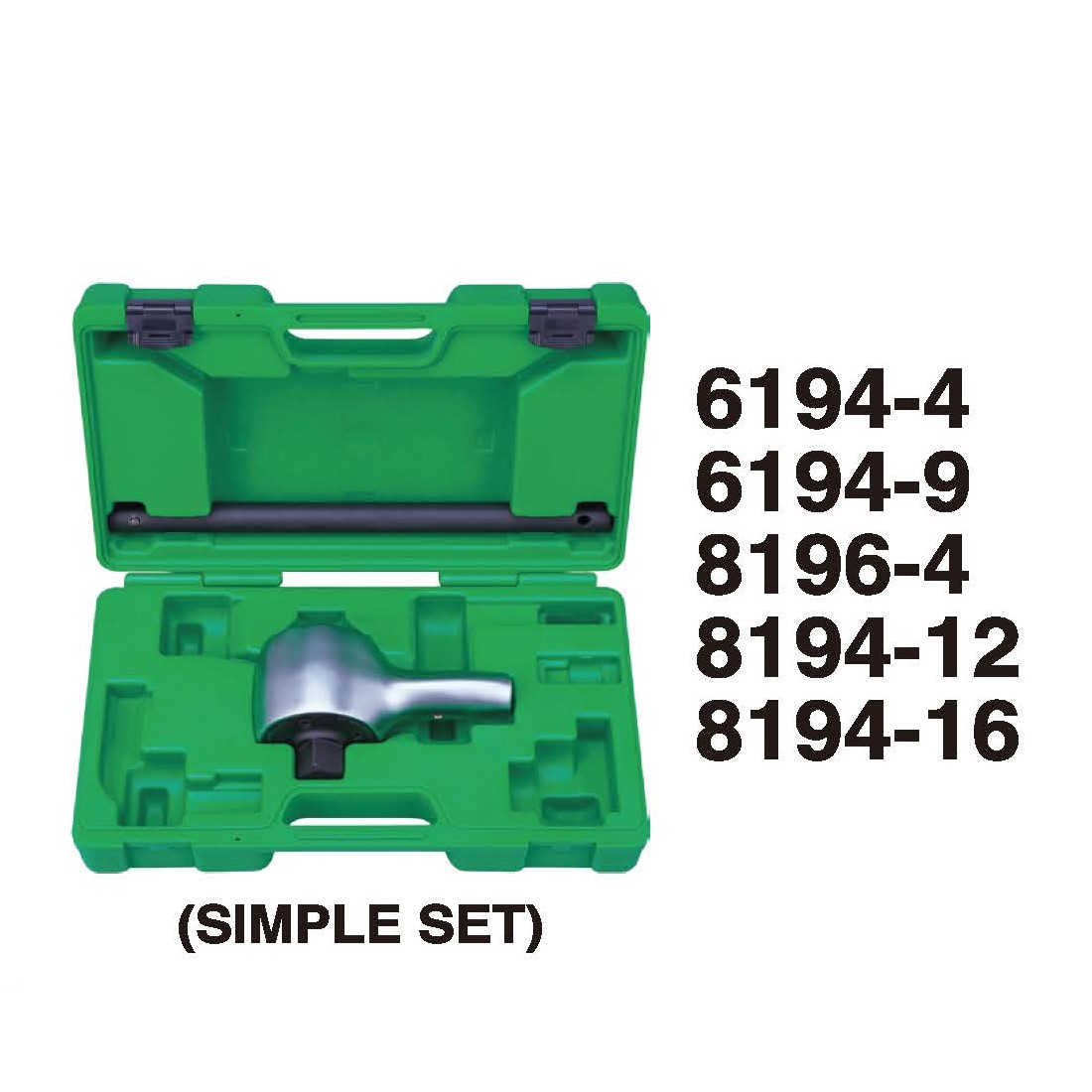

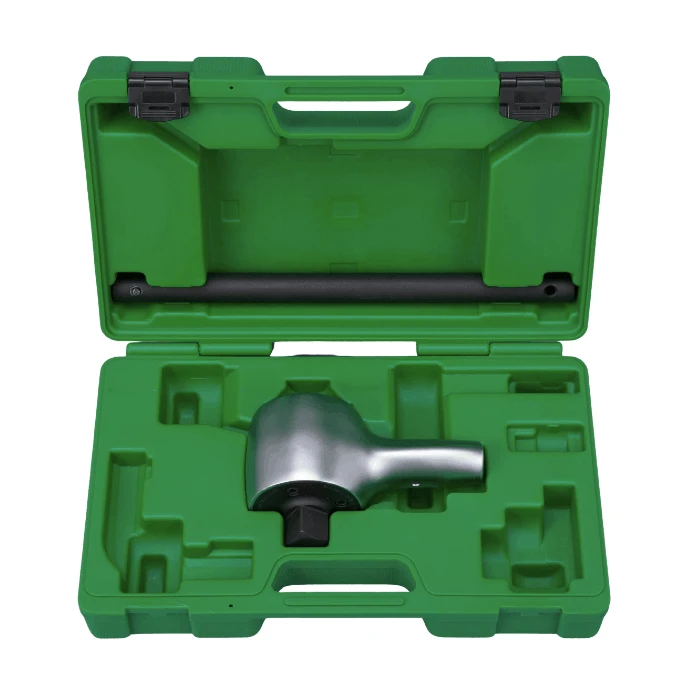

Torque Multiplier Tool Single Set (2 PCs) 6194, 8194 Series

  • Multiplicateur de dynamometrique
  • Mnożnik momentu obrotowego
  • Drehmomentmultiplikator
  • Multiplicando dinamométrica
  • مضاعف عزم الدوران
  • ตัวคูณแรงบิด
  • 倍力器
  • Quality Tools for Lifetime

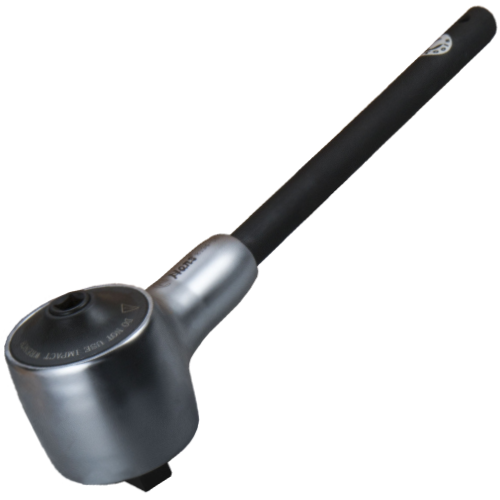

6196-8194 Torque Multiplier

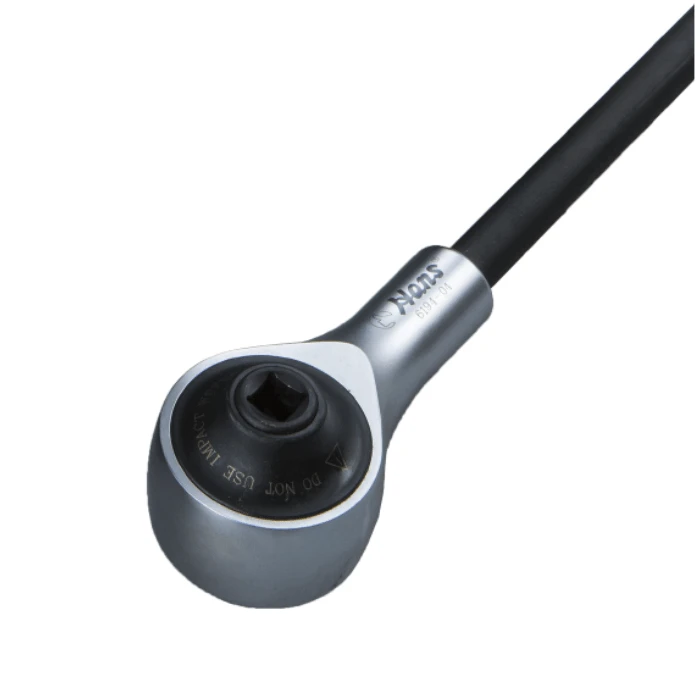

Torque Multiplier

Make work easier by using leverage which multiplies the Torque.
There are three ways simple machines make work easier:

  1. by increasing the distance through which force is applied,
  2. by changing the direction of applied force,
  3. by multiplying force of speed of the energy applied.
ITEM NO.F
(HORSE)
M
(SQUARE)
GEAR
RATIO
TORQUE
RATIO
6194-41/2" DR.3/4" DR.1 : 41 : 3.3
6194-91/2" DR.3/4" DR.1 : 91 : 6.5
8196-43/4" DR.1" DR.1 : 41 : 3.3
8194-121/2" DR.1" DR.1 : 121 : 9
8194-161/2" DR.1" DR.1 : 161 : 12
61901/2" DR.3/4" DR.1 : 31 : 3
81903/4" DR.1" DR.1 : 31 : 3
W
mm
H
mm
L
mm
INPUT
TORQUE
N · m
OUTPUT
TORQUE
N · m
porduct sizeicon1
g
7078428MAX : 303MAX : 10002250 packing
8297480MAX : 231MAX : 15004200 packing
96111500MAX : 758MAX : 25005660 packing
82110480MAX : 222MAX : 20004500 packing
96134500MAX : 208MAX : 25005850 packing
7384425MAX : 500MAX : 15002350 packing
91113.5500MAX : 1000MAX : 30004850 packing
